microSD Card

Wide-Temp -40℃~+85℃ · UHS-I High-Speed · Industrial High-Reliability

Industrial-grade TF memory card (microSD), adopting wide-temperature flash memory particles and industrial-grade firmware optimization. It is compatible with standard microSD interface, featuring wide-temperature stability, vibration resistance, water/dust proofing, and high data reliability, designed for industrial embedded systems, in-vehicle, security, and outdoor equipment in harsh environments.

Operating Temperature
-40℃~+85℃
Capacity Range
8GB-256GB
Inquire Now Download Manuals

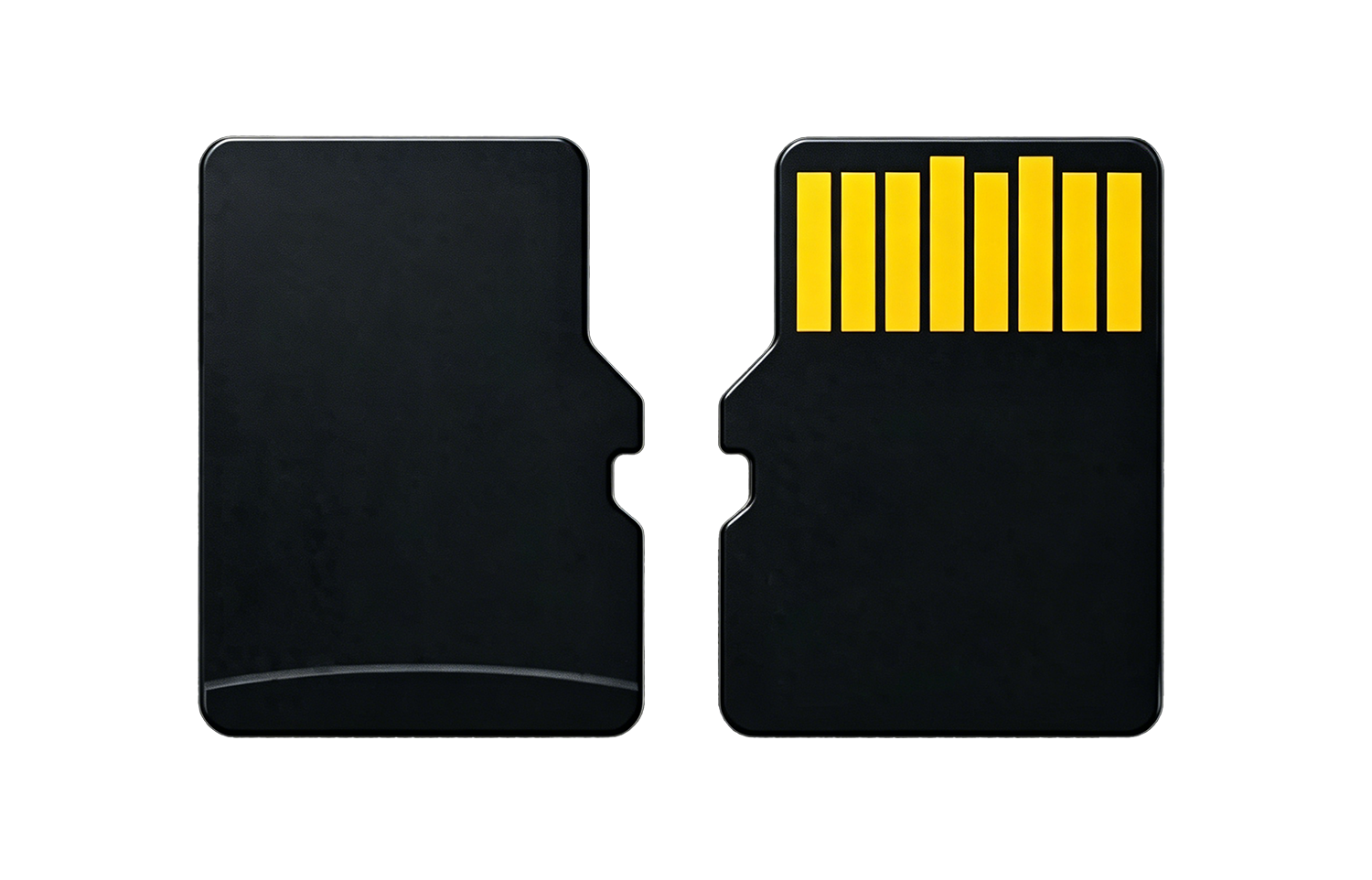

microSD Card — product image
Product Features

Industrial TF Memory Card Storage Solution

Standard microSD interface, wide-temperature stability, strong protection, suitable for harsh industrial scenarios

1

Compatible with standard microSD (TF) interface, UHS-I high speed, plug-and-play, compatible with most embedded devices

2

-40℃~+85℃ ultra-wide temperature operation, passed GJB150A environmental test, adaptable to extreme temperatures

3

Waterproof, dustproof, vibration-resistant, and plug-resistant, meeting in-vehicle, security, and outdoor harsh environments

4

Industrial-grade wide-temperature flash memory, with wear leveling and ECC error correction, more secure data and longer service life

5

100% domestic solution optional, ZZKK certification applicable, meeting independent controllability requirements

Technical Advantages

Core Advantages of Industrial TF Card

Miniaturized, Wide-Temp, High-Protection, High-Reliability Industrial TF Storage Solution

1

Standard TF interface, high versatility and easy integration

2

-40℃~+85℃ wide temperature range, adaptable to harsh industrial environments

3

Waterproof, dustproof, vibration-resistant, excellent protection performance

4

Domestic + ZZKK certification, independent and controllable

Technical Specifications

Detailed Technical Specifications

Complete Parameters of Industrial TF Memory Card

Product Specifications

Interface Type
microSD (TF) 3.0 / UHS-I
Capacity Option
8GB/16GB/32GB/64GB/128GB
Operating Temperature
-40℃~+85℃
Storage Temperature
-45℃~+95℃
Read Speed
Up to 95MB/s
Write Speed
Up to 50MB/s
Protection Features
Waterproof, Dustproof, Vibration-Resistant, Plug-Resistant
Error Checking
ECC Supported
Reliability Standard
GJB150A
Domestic Certification
ZZKK Applicable
Warranty Period
5 Years

Part Numbers

Orderable Part Numbers

Verified Loongtion part numbers for this product line. Copy a PN into your BOM or inquiry — confirm package, temperature grade, and firmware with engineering before production.

Part Number Grade Specification
YIDG01TSOT-S Industrial Grade 1TB
YIDG032SBM-S Industrial Grade 32GB
YIDG064SBM-S Industrial Grade 64GB
YIDG128SBM-S Industrial Grade 128GB
YIDG128SOT-S Industrial Grade 128GB
YIDG256SBM-S Industrial Grade 256GB
YIDG256SOT-S Industrial Grade 256GB
YIDG512SBM-S Industrial Grade 512GB
YIDG512SOT-S Industrial Grade 512GB
YIDH008PDM-S Industrial Grade 8GB
YIDH008PYE-S Industrial Grade 8GB
YIDH016PDM-S Industrial Grade 16GB
YIDH016PYE-S Industrial Grade 16GB
YIDH032PDM-S Industrial Grade 32GB
YIDH032PYE-S Industrial Grade 32GB
YIDH064PYE-S Industrial Grade 64GB
YIDU008TUS-S Industrial Grade 8GB · -40℃~+85℃ · 11×15mm · SLC mode
YIDU016TUS-S Industrial Grade 16GB · -40℃~+85℃ · 11×15mm · SLC mode
YIDU032TUS-S Industrial Grade 32GB · -40℃~+85℃ · 11×15mm · SLC mode
YIDU032TUT-S Industrial Grade 32GB · -40℃~+85℃ · 11×15mm · TLC mode
YIDU064TUS-S Industrial Grade 64GB · -40℃~+85℃ · 11×15mm · SLC mode
YIDU064TUT-S Industrial Grade 64GB · -40℃~+85℃ · 11×15mm · TLC mode
YIDU128TUT-S Industrial Grade 128GB · -40℃~+85℃ · 11×15mm · TLC mode
YIDU256TUT-S Industrial Grade 256GB · -40℃~+85℃ · 11×15mm · TLC mode
YMDH008PDS-S Industrial Grade 8GB
YMDH016PDS-S Industrial Grade 16GB
YMDH032PDS-S Industrial Grade 32GB

Need a Micron, Samsung, or other incumbent cross-reference? See the part-number cross-reference catalog.

Application Cases

Industrial Embedded & In-Vehicle Security Scenarios

Typical Applications of Industrial TF Memory Card

1

Industrial Embedded & Security Monitoring Storage

Used in surveillance cameras, industrial data loggers, and embedded devices, wide temperature range ensures stable 7×24 continuous storage.

Application Effects

  • Wide temperature ensures stable operation without disconnection
  • 24/7 continuous recording
  • Waterproof and dustproof for high reliability
2

In-Vehicle & Outdoor Equipment Storage

Used in in-vehicle navigation, outdoor terminals, and UAV storage, vibration-resistant and wide-temperature, adaptable to complex in-vehicle and outdoor environments.

Application Effects

  • Vibration-resistant and high-temperature resistant
  • Waterproof and dustproof protection
  • Standard TF interface for easy replacement

Related technical resources

Browse all technical resources →

Related products

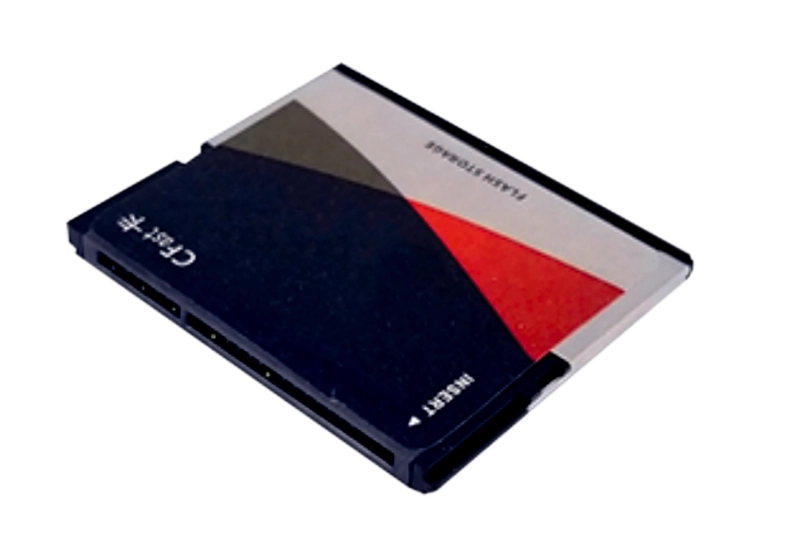

CFast Card — product image
Memory Cards

CFast Card

Industrial CFast memory card based on the SATA III Protocol, adopting Industrial chips and high-reliability firmware, is compatible with scenarios such as industrial automation and aviation that have requirements for speed and stability.

View CFast Card Inquire Now

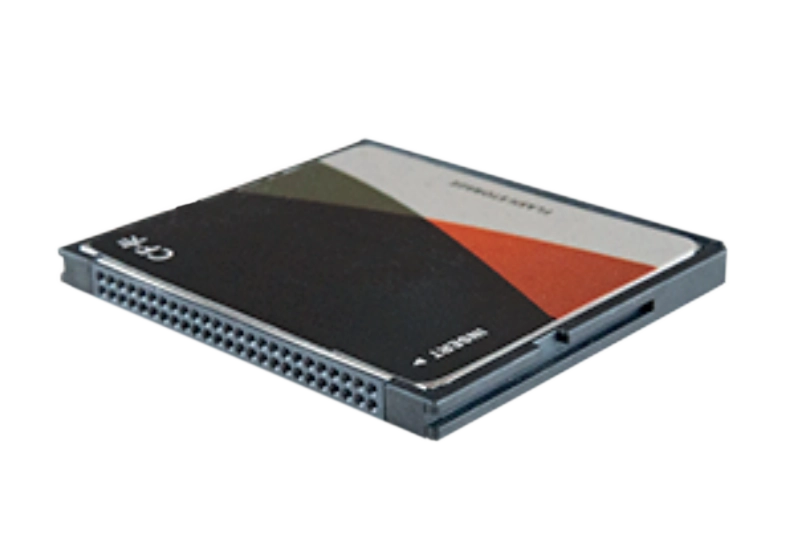

CF Card — product image
