Industrial M.2 NVMe SSD — 2280 & 2242 | Loongtion
End-use notice: For civilian industrial, embedded, and infrastructure programs only. Not for military or defense applications.
Loongtion · Industrial M.2 NVMe · Global B2B
Industrial M.2 NVMe for Wide Temperature, Heavy Write, and 24/7 Field Duty
Standard M.2 NVMe modules—PCIe 3.0 x4, NVMe 1.4—for industrial and embedded hosts: broad compatibility, plug into a standard NVMe slot and run. Built for Operating −40°C to +85°C · Storage −45°C to +90°C (Industrial Grade (I)), TLC NAND endurance, and stable logging—not desk-rated consumer drives.
- Wide temperature: operating −40°C to +85°C · storage −45°C to +90°C
- Durability:TLC NAND · 3000 P/E · published TBW per PN
- Stability: release screening in Xi’an · 5-year warranty
- 2280 / 2242: choose by size & capacity (DRAM-less or cache on 2280)
- Datasheet & quote — typically within 24 hours (Mon–Fri)
- −40°Coperating min
- +85°Coperating max
- 7×24field duty
- NVMeplug & play
*Peak read up to 2900 MB/s on 2280 with DRAM cache, 8 TB per datasheet—secondary to wide-temperature endurance and stability for industrial programs.
Your challenge
Desk SSDs Fail in the Field
- Wide-temperature stress — cold starts and hot sealed cabinets; consumer 0–70°C parts
- No endurance to plan — 24/7 logs and local stores with no published TBW
- Stability under duty — random dropouts and retention risk in always-on programs
- Unknown flash grade — QLC or unstated NAND on parts not built for industrial write cycles
- No engineering path — when a rare platform quirk appears, no one to help tune
Our solution
Wide Temp · Durable · Stable · Standard NVMe
TLC NAND industrial M.2 modules for programs that cannot treat storage as a desk upgrade. Standard PCIe NVMe for broad host compatibility—and Loongtion engineering when a platform needs firmware review or tune.
| Field requirement | Loongtion answer |
|---|---|
| Wide-temperature duty | Operating −40°C to +85°C · Storage −45°C to +90°C (Industrial Grade (I), datasheet) |
| Heavy / continuous write | TLC NAND · 3000 P/E · published TBW by capacity |
| 24/7 stability | Release screening in Xi’an · consistent firmware & lot QA |
| Host compatibility | Standard M.2 NVMe · PCIe 3.0 x4 · NVMe 1.4 · standard M.2 gold finger (3 μin plating) · plug-and-play on typical industrial hosts |
| Rare platform edge case | Engineering review & tune (power policy, erase behavior, -SD)—ask sales |
| Capacity & form factor | 2280 (DRAM-less or cache to 8 TB) · 2242 (DRAM-less to 1 TB) |
Consumer SSD vs Loongtion Industrial NVMe
| Topic | Typical consumer M.2 | Loongtion industrial |
|---|---|---|
| Operating ambient | Often 0–70°C | −40°C to +85°C |
| Storage (non-powered) | Often unspecified | −45°C to +90°C |
| NAND type | Often QLC / unspecified | TLC NAND · 3000 P/E |
| Endurance (24/7 duty) | Often unstated | Published TBW · TLC 3000 P/E |
| Field stability | Desk / intermittent use | Xi’an release screening · 5-yr warranty |
| Interface | Consumer retail focus | Standard M.2 NVMe · broad industrial host compatibility |
| Engineering support | Retail / distributor | Direct support · firmware tune for edge cases |
| Form factors | Usually 2280 only | 2280 + 2242 one program |
Products
M.2 2280 & 2242 — Specs & Part Numbers
Same industrial NVMe stack—wide temperature, TLC endurance, standard interface. Pick 2280 or 2242 by board size and capacity; 2242 is DRAM-less only. Click a card for parameters and orderable PNs.
80×22 mm · DRAM-less & cache
- DRAM-less: 256 GB – 2 TB
- With cache: 1 TB – 8 TB
- −40°C to +85°C · published TBW
- DRAM-less or cache · up to 8 TB
42×22 mm · DRAM-less only
- 256 GB – 1 TB
- −40°C to +85°C · compact embedded
- 5-yr warranty · DRAM-less only
Outdoor gateway / telecom edge
Wide-temperature logging · 7×24 stable duty
Industrial PC / SCADA
Plan TBW for retention · standard NVMe host
Compact embedded
2242 · same industrial stack · 256 GB–1 TB

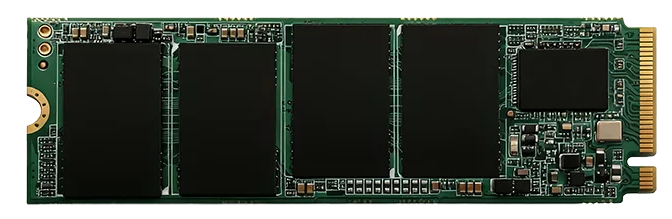

M.2 2280 — Specs & Part Numbers
80 mm × 22 mm · height ≤ 5 mm · TLC NAND · standard M.2 NVMe for typical industrial hosts (datasheet for full electrical detail).
| Parameter | M.2 2280 |
|---|---|
| NAND flash | TLC NAND · 3000 P/E · wear leveling |
| Interface | PCIe 3.0 x4 · NVMe 1.4 · standard M.2 gold finger (3 μin plating) |
| Host compatibility | Standard M.2 NVMe · PCIe 3.0 x4 · NVMe 1.4 · standard M.2 gold finger (3 μin plating) |
| DRAM-less line | 256 GB – 2 TB · YIDJ…NZT-S · 5-yr warranty |
| With DRAM cache | 1 TB – 8 TB · YIDJ…NQT-S · 5-yr warranty |
| Operating ambient | −40°C to +85°C (Industrial Grade (I)) |
| Storage temperature | −45°C to +90°C |
| Soft self-destruct | Optional -SD on DRAM-less — custom PN, ask sales |
2280 DRAM-less — orderable PNs
| Capacity | Part number | Seq. read / write* | TBW |
|---|---|---|---|
| 256 GB | YIDJ256NZT-S | ≥1500 / ≥700 MB/s | 180 TB |
| 512 GB | YIDJ512NZT-S | ≥2000 / ≥900 MB/s | 360 TB |
| 1 TB | YIDJ01TNZT-S | ≥2200 / ≥1400 MB/s | 720 TB |
| 2 TB | YIDJ02TNZT-S | ≥2500 / ≥1800 MB/s | 1400 TB |
2280 with DRAM cache — orderable PNs
| Capacity | Part number | Seq. read / write* | TBW |
|---|---|---|---|
| 1 TB | YIDJ01TNQT-S | ≥2000 / ≥1500 MB/s | 400 TB |
| 2 TB | YIDJ02TNQT-S | ≥2300 / ≥2000 MB/s | 800 TB |
| 4 TB | YIDJ04TNQT-S | ≥2863 / ≥2316 MB/s | 1600 TB |
| 8 TB | YIDJ08TNQT-S | ≥2900 / ≥2600 MB/s | 3200 TB |
*Speeds are reference values per datasheet (CrystalDiskMark). Usable capacity tolerance ±10% on all capacities. DRAM cache: ~1 GB DRAM cache per 1 TB SSD capacity (Micron or ChangXin, batch-dependent). Single DRAM vendor (Micron or ChangXin) can be locked on request for production batches—state on PO.

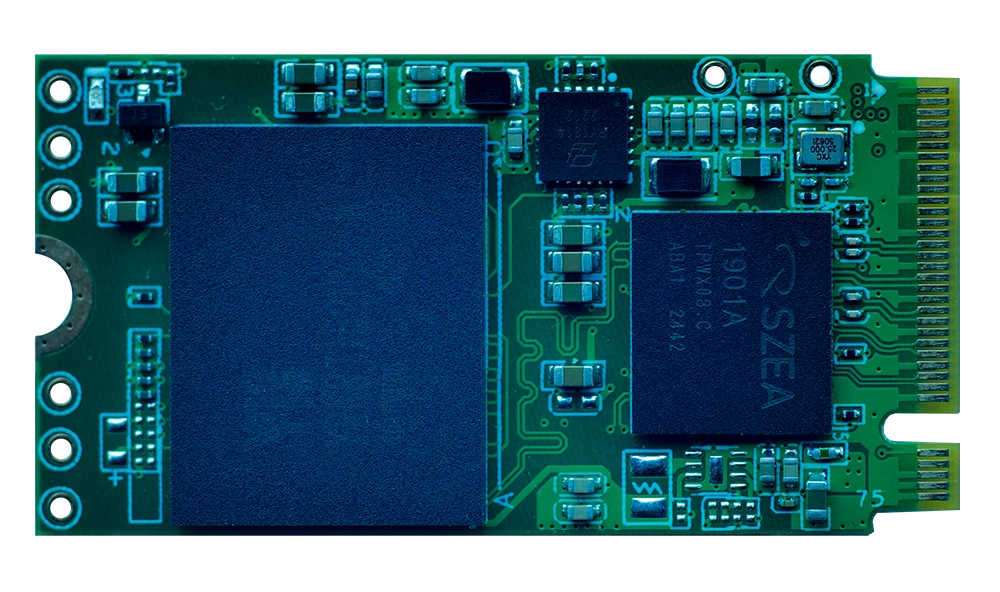

M.2 2242 — Specs & Part Numbers (DRAM-less Only)
42 mm × 22 mm · height ≤ 5 mm · DRAM-less only · same wide-temperature TLC NAND stack and NVMe 1.4 interface as 2280.
| Parameter | M.2 2242 |
|---|---|
| NAND flash | TLC NAND · 3000 P/E · wear leveling |
| Interface | PCIe 3.0 x4 · NVMe 1.4 · standard M.2 gold finger (3 μin plating) |
| Host compatibility | Standard M.2 NVMe · PCIe 3.0 x4 · NVMe 1.4 · standard M.2 gold finger (3 μin plating) |
| Capacities | 256 GB – 1 TB · YIDJ…VZT-S |
| Operating ambient | −40°C to +85°C (Industrial Grade (I)) |
| Storage temperature | −45°C to +90°C |
| Warranty | 5 years |
2242 DRAM-less — orderable PNs
| Capacity | Part number | Seq. read / write* | TBW |
|---|---|---|---|
| 256 GB | YIDJ256VZT-S | ≥1500 / ≥700 MB/s | 180 TB |
| 512 GB | YIDJ512VZT-S | ≥2000 / ≥900 MB/s | 360 TB |
| 1 TB | YIDJ01TVZT-S | ≥2200 / ≥1400 MB/s | 720 TB |
*Reference speeds per datasheet. Usable capacity tolerance ±10%. Example PNs: YIDJ256VZT-S (256 GB), YIDJ512VZT-S (512 GB), YIDJ01TVZT-S (1 TB).
Meet Loongtion
Wide-temperature industrial M.2 NVMe—screening in Xi’an, shipment from Ningbo. Watch our intro on wide temp, TLC endurance, standard PCIe NVMe, and engineering support for edge cases.
Services
What Loongtion Delivers for Your Program
PDF datasheet, commercial quote, and engineering when you need it—firmware review or tune on edge-case platforms, release screening in Xi’an, shipment from Ningbo.
Complete PDF datasheet
Wide-temperature ratings, TLC endurance (TBW), electrical/mechanical data, and orderable part numbers.
Commercial quotation
Capacity, form factor, cache option, quantity, and destination pricing—see commercial terms below.
Firmware & platform support
Standard NVMe on typical hosts—and when your platform needs it, engineering review and tune (power policy, erase behavior, optional -SD).
Remote engineering support
Loongtion engineers by email—endurance planning, stability escalation, and field-issue follow-up on qualified programs.
Commercial Terms (B2B)
Full terms for procurement review—also summarized in your quotation PDF.
Quotation validity: 7 calendar days after we review your requirements—request a refresh if your project timeline slips.
- Order quantity:No fixed MOQ. If your part number is in stock, we can often ship from 1 piece. For build-to-order programs, we confirm the practical minimum on your quote—kept as low as we can when we can manufacture for your project.
- Payment: T/T wire transfer—50% deposit on order, 50% before shipment
- Dispatch: default from Ningbo, China · bulk lead typically 4–6 weeks (working days)
- Express delivery: typically 3–5 business days after dispatch to major regions via express courier (customs may add time)
- Samples: typically 1–5 pcs per PN for validation; sample fee and credit terms confirmed on your quotation
- Warranty: see warranty notice above—5 years on all industrial M.2 NVMe SKUs
- Pricing: no public price list—quoted per capacity, form factor, quantity, and destination
Company
About Loongtion
Loongtion (龙瑆) develops and releases this industrial M.2 NVMe program in-house—qualified TLC NAND, lot screening in Xi’an for stable field duty, global shipment from Ningbo.
In-house SSD program
Materials, firmware criteria, release testing, and direct engineering—built for industrial temperature and endurance, not desk retail.
Xi’an QA & ISO9001
Electrical and environmental screening before release; quality system backed by ISO9001 and in-house test capability.
Wide temp · durable · stable
Operating −40°C to +85°C · Storage −45°C to +90°C per datasheet, published TBW, and TLC NAND with wear leveling—for 7×24 programs that cannot gamble on consumer parts.
“Reliability is what we test before release—not a line on a consumer label.” — Loongtion Engineering
Registration, IP & Quality Documentation
Loongtion and Yizhuo program credentials—full copies included in your quotation pack on request.
Business registration & enterprise recognition

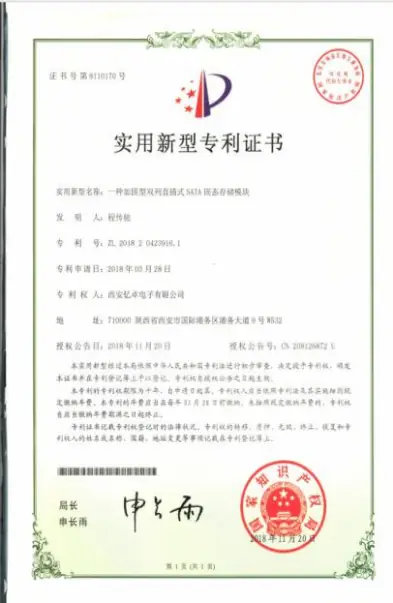

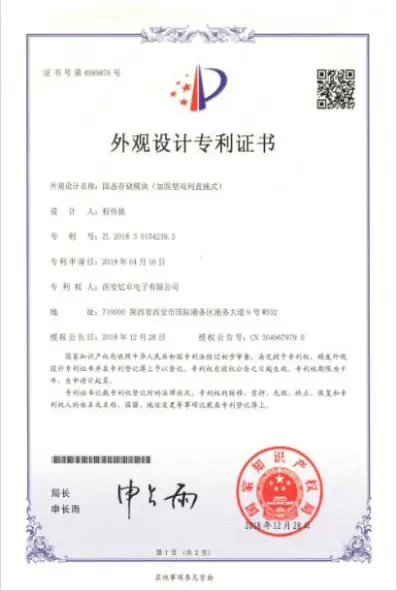

ISO9001, trademarks & patents
Inquiry
Get Datasheet & Request a Quote
Email is the best way to reach us. Share target capacity, form factor (2280 or 2242), quantity breaks, and any platform notes if you need firmware review. We usually respond within 24 hours (Monday–Friday).
Preferred
Or complete the inquiry form below ↓
Frequently Asked Questions
Quick answers for procurement and design-in engineers.
Getting started
How do I get the datasheet and quote?
Email is preferred (hi@loongtion.com) or use the inquiry form below. We usually reply within 24 hours (Monday–Friday) with PDF datasheet and commercial quotation.
Will it work in my host system?
These are standard M.2 NVMe modules (PCIe 3.0 x4, NVMe 1.4)—broad compatibility with typical industrial and embedded hosts that expose a standard NVMe M.2 slot. If you hit a rare platform quirk (power sequencing, erase policy, etc.), share details—our engineers can review and tune where the program allows.
2280 or 2242—which should I choose?
By board size and capacity: 2280 when you want DRAM-less up to 2 TB or cache up to 8 TB; 2242 for compact designs (DRAM-less, up to 1 TB). Both use the same industrial wide-temperature TLC stack.
DRAM-less or with DRAM cache on 2280?
DRAM-less (YIDJ…NZT-S): lower power, 256 GB–2 TB, 5-year warranty. With DRAM cache (YIDJ…NQT-S): 1 TB–8 TB, higher sustained throughput, 5-year warranty. Share your workload and we will recommend.
Product & quality
What NAND flash do you use?
Both form factors use TLC NAND flash as the storage medium, with 3000 P/E cycles, wear leveling, and published TBW by capacity. This balances cost and capacity for industrial embedded and field programs—not consumer QLC desk drives.
What temperature range is guaranteed?
Industrial Grade (I) per datasheet: operating −40°C to +85°C and storage −45°C to +90°C. Share enclosure peak temperature for validation on your hardware.
Are you a trading company?
No. Loongtion develops and releases this SSD program in-house—qualified TLC NAND, Xi’an screening, and direct engineering support on qualified programs.
What is soft self-destruct (-SD)?
Optional secure-erase trigger on pin 67 (customer-defined). Available as custom -SD part numbers on DRAM-less 2280. May add NRE / extended lead time—confirm pricing and firmware cycle with sales before PO.
Can you lock DRAM cache to one vendor?
Yes. Cache SKUs may use Micron or ChangXin DRAM by batch. For production programs, request a single vendor locked on your quotation—state on PO.
Custom firmware or silkscreen logo?
Project-dependent. Share your requirements (firmware behavior, labeling, -SD policy)—we confirm feasibility, NRE, and lead time in the quotation.
Commercial
What are order quantity, payment, and delivery terms?
See Commercial terms: no fixed MOQ—often from 1 pc when in stock; build minimums confirmed on quote. Payment T/T 50%+50%, ship from Ningbo, bulk lead 4–6 weeks when building.
What is your minimum order quantity?
No fixed MOQ. In-stock part numbers can often ship from 1 piece. If we need to build or allocate production, we quote the practical minimum for that PN—as low as we can when the program is feasible. Different capacities are quoted line by line; mixing PNs on one PO is fine.
Is this for military or defense use?
No. We do not market these SSDs for military or defense end-use. Industrial qualification is for harsh civilian infrastructure.
