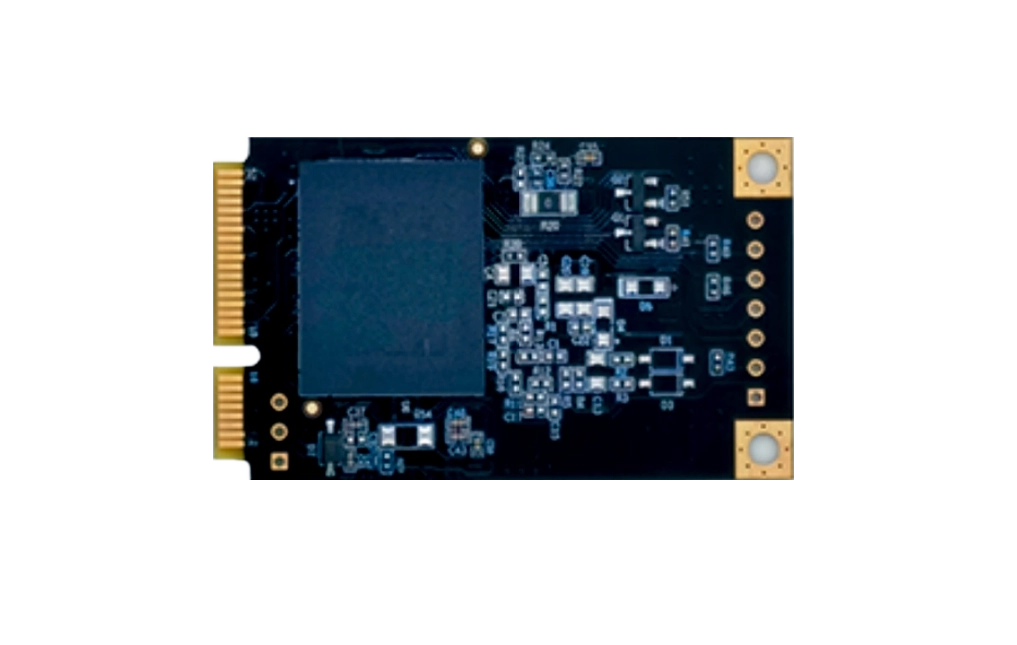

mSATA SSD · CN · Wide-temp
Domestic TLC · Cacheless
Key facts
What industrial buyers usually need to know first — before diving into the full datasheet.
5-year supply · 12-month EOL notice
Qualified SKUs stay available for long-lifecycle equipment — you get advance notice before any discontinuation.
MOQ from 1 pc
Prototype and repair lots without large inventory lock-in — then scale to production.
BOM review & firmware fit
We help match incumbent PNs, validate drop-in paths, and can adjust firmware / grade when the catalog needs a tweak.
5-year warranty · 4–8 weeks lead time
Stable production scheduling with a typical 4–8 weeks lead time once configuration and forecast are agreed.
| MOQ | From 1 pc |
|---|---|
| Standard lead time | 4–8 weeks (typical; confirm with sales for your configuration) |
| Warranty | 5 years (see /warranty for tier details) |
| Supply commitment | Minimum 5 years for qualified SKUs · 12-month EOL notice |
| Engineering support | BOM review, drop-in / fit checks, firmware and temperature-grade adaptation on request |
| Samples | Available on request |
Overview
100% China-localized mSATA SSD (YIDE*KT*) on domestic controller and YMTC NAND. Industrial wide-temp −40°C to +85°C TLC bins for embedded hosts that require a CN supply path without redesigning the mSATA footprint.
Specifications
| Interface | mSATA (SATA) |
|---|---|
| Package | mSATA |
| Supply option | China-localized (CN) |
| Flash | TLC |
| Cache | Dramless |
| Operating temperature | −40°C to +85°C |
| Capacity | 128GB / 256GB / 512GB / 1TB |
| PN family | YIDE*KT*-S |
| Grade | Industrial wide-temp |
Orderable part numbers
Handbook PNs for this page. Confirm package, temperature bin, and speed grade before production.
| Part number | Grade | Summary |
|---|---|---|
YIDE01TSKT-S |
Wide-temp | 1TB · China-localized · TLC · -40℃~+85℃ |
YIDE128SKT-S |
Wide-temp | 128GB · China-localized · TLC · -40℃~+85℃ |
YIDE256SKT-S |
Wide-temp | 256GB · China-localized · TLC · -40℃~+85℃ |
YIDE512SKT-S |
Wide-temp | 512GB · China-localized · TLC · -40℃~+85℃ |
Cross-references
No verified one-to-one vendor PN is published for this SKU yet. Browse the part-number catalog or contact engineering for BOM matching.
Compliance & Standards
Quality and release processes for Loongtion industrial memory and storage. Formal certificates and scope statements are available in the quotation pack on request.
Quality management system
-
ISO 9001:2015 certified (GB/T 19001-2016)
Quality management systems — Requirements. Certified quality system covering semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
-
Conforms to GJB 9001C—2017
Quality management systems — Requirements. Quality system practices conform to GJB 9001C for the same scope: semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
Product & interface standards
This catalog SKU follows the industry specifications that define its form factor and host interface.
-
Industry SSD host interfaces
Host interface, command set, and form-factor behavior follow the applicable SATA, NVMe, or eMMC specification listed on the datasheet.
-
Serial ATA (SATA)
SATA interface timing and command set follow the SATA revision applicable to the listed SKU (commonly SATA III).
Grade wording: Product grade definition.
Key highlights
What matters for BOM review and board bring-up.
-
China-localized BOM (CN)
Domestic controller + YMTC NAND for CN-labeled programs.
-
Industrial wide-temp
−40°C to +85°C TLC bins for factory and outdoor cabinet duty.
-
mSATA footprint
Drop-in mSATA module for legacy industrial motherboards and compact embedded PCs.
-
Dramless design
Cacheless architecture for cost-efficient industrial BOMs.
Typical applications
Where this SKU is commonly designed in.
CN-labeled embedded systems
Industrial PCs and controllers that require a domestic supply path.
- YIDE*KT* handbook PNs
- TLC capacity ladder
- Confirm host mSATA power budget
Legacy mSATA hosts
Compact boards still standardized on mSATA rather than M.2.
- Wide-temp continuous duty
- Dramless cost profile
- CN badge when required
