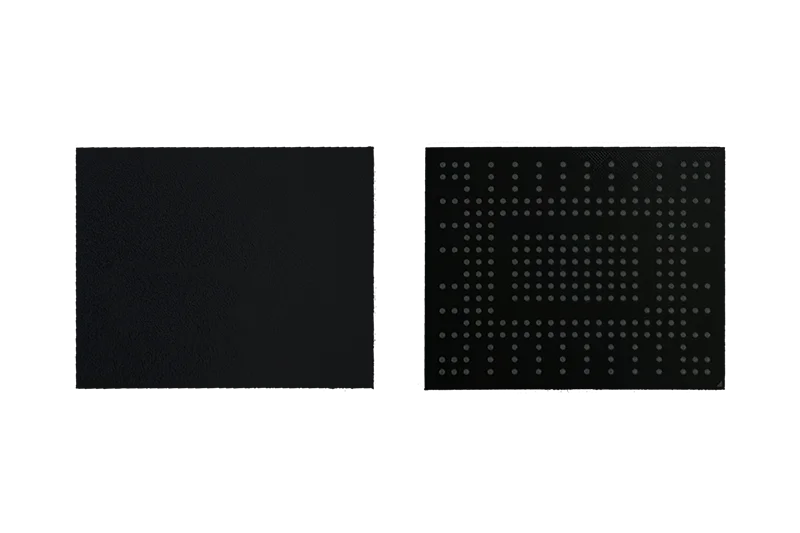

NVMe BGA SSD · Wide-temp
Compact NVMe BGA with PCIe Gen3×4
Key facts
What industrial buyers usually need to know first — before diving into the full datasheet.
5-year supply · 12-month EOL notice
Qualified SKUs stay available for long-lifecycle equipment — you get advance notice before any discontinuation.
MOQ from 1 pc
Prototype and repair lots without large inventory lock-in — then scale to production.
BOM review & firmware fit
We help match incumbent PNs, validate drop-in paths, and can adjust firmware / grade when the catalog needs a tweak.
5-year warranty · 4–8 weeks lead time
Stable production scheduling with a typical 4–8 weeks lead time once configuration and forecast are agreed.
| MOQ | From 1 pc |
|---|---|
| Standard lead time | 4–8 weeks (typical; confirm with sales for your configuration) |
| Warranty | 5 years (see /warranty for tier details) |
| Supply commitment | Minimum 5 years for qualified SKUs · 12-month EOL notice |
| Engineering support | BOM review, drop-in / fit checks, firmware and temperature-grade adaptation on request |
| Samples | Available on request |
Overview
Industrial NVMe SSD chip with BGA package features small size, light weight and low power consumption. It achieves Industrial high-speed storage via the high-speed PCIe interface and is compatible with high-end industrial embedded devices with limited space.
Specifications
| Interface | PCIe Gen3×4 (NVMe) |
|---|---|
| Package | FBGA291 |
| Dimension Specification | 16.0mm×20.0mm×1.58mm |
| Capacity Options | 64GB/128GB/256GB/512GB |
| Operating temperature | -40℃~+85℃ |
| Storage temperature | -45℃~+90℃ |
| Read Speed | Up to 1800MB/s |
| Write Speed | Up to 1000MB/s |
| System Compatibility | VxWorks, Linux, etc. |
| Warranty Period | 5 Years |
Orderable part numbers
Handbook PNs for this page. Confirm package, temperature bin, and speed grade before production.
| Part number | Grade | Summary |
|---|---|---|
YIDF01TGLT-S |
Wide-temp | 1TB · TLC · -40℃~+85℃ |
YIDF032NMS-S |
Wide-temp | 32GB · China-localized · pSLC · -40℃~+85℃ |
YIDF064GLT-S |
Wide-temp | 64GB · TLC · -40℃~+85℃ |
YIDF064NMS-S |
Wide-temp | 64GB · China-localized · pSLC · -40℃~+85℃ |
YIDF128GLT-S |
Wide-temp | 128GB · TLC · -40℃~+85℃ |
YIDF128NMS-S |
Wide-temp | 128GB · China-localized · pSLC · -40℃~+85℃ |
YIDF256GLT-S |
Wide-temp | 256GB · TLC · -40℃~+85℃ |
YIDF256NMT-S |
Wide-temp | 256GB · China-localized · TLC · -40℃~+85℃ |
YIDF512GLT-S |
Wide-temp | 512GB · TLC · -40℃~+85℃ |
YIDF512NMT-S |
Wide-temp | 512GB · China-localized · TLC · -40℃~+85℃ |
Cross-references
Vendor families for BOM exploration. Always validate ball map, speed bin, and temperature grade on your host.
Compliance & Standards
Quality and release processes for Loongtion industrial memory and storage. Formal certificates and scope statements are available in the quotation pack on request.
Quality management system
-
ISO 9001:2015 certified (GB/T 19001-2016)
Quality management systems — Requirements. Certified quality system covering semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
-
Conforms to GJB 9001C—2017
Quality management systems — Requirements. Quality system practices conform to GJB 9001C for the same scope: semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
Product & interface standards
This catalog SKU follows the industry specifications that define its form factor and host interface.
-
Industry SSD host interfaces
Host interface, command set, and form-factor behavior follow the applicable SATA, NVMe, or eMMC specification listed on the datasheet.
-
NVM Express (NVMe)
Command set and PCIe-attached storage behavior conform to the NVMe specification revision applicable to the listed SKU.
-
PCI Express
Physical and link-layer attachment follows the PCIe generation and lane width stated on the datasheet (for example PCIe 3.0 ×4).
Grade wording: Product grade definition.
Key highlights
Advanced Industrial architecture ensures stable performance in harsh environments.
-
FBGA291 Package
Physical dimensions 16.0mm×20.0mm×1.58mm, lighter than traditional SSDs
-
PCIe Gen3×4 Interface
Maximum sequential read speed up to 1800MB/s, maximum sequential write speed up to 1000MB/s
-
Wide-temperature operation
range -40℃~+85℃, storage temperature range: -45℃~+90℃, adaptable to extreme Industrial environments
- Environmental testing
-
Covers 64GB~512GB
compatible with Industrial high-frequency small-capacity data storage scenarios
Typical applications
Real industrial application scenarios to verify the reliability and practicality of products.
Embedded Storage for Rugged Industrial Industrial Tablets
Applied to rugged Industrial industrial tablets, the compact package is compatible with compact designs, and the high-speed PCIe interface enhances system performance.
- Miniaturized Package Compatible with Tablets
- High-Speed Interface Improves System Response Speed
- Passes High Reliability Tests
Industrial Devices for Replacing U.S. SMI PCIe BGA SSDs
Used in industrial devices to replace U.S. SMI solutions, achieving high-quality replacement and meeting high reliability requirements.
- High-Quality Alternative to Imported Solutions
- Compatible with Original System Design
- Meets High Reliability Requirements
Series
-
Industrial NVMe BGA SSD
Solder-down NVMe BGA SSD for embedded systems.
Frequently asked questions
What is the operating temperature range of the Loongtion NVMe BGA SSD?
YIDF series supports wide-temperature industrial grades; the Extreme variant is rated -55C to +95C, beyond the -40C floor of most competitors.
What interface and performance does it offer?
PCIe Gen3 x4 (TLC) / x2 (pSLC), NVMe 1.4, HMB (host memory buffer), 20 x 16 x 1.3 mm BGA. Datasheet-measured: TLC 1,100 MB/s read / 550 MB/s write; pSLC 1,200 MB/s read / 1,300 MB/s write; 4K random write up to 120K IOPS.
Is this a drop-in replacement for Phison PSS5A324?
Yes - the NVMe BGA SSD has a published cross-reference for Phison PSS5A324 and Micron M.2 NVMe industrial families. See the cross-reference catalog.
What is the lead time?
4-8 weeks for standard industrial orders.
