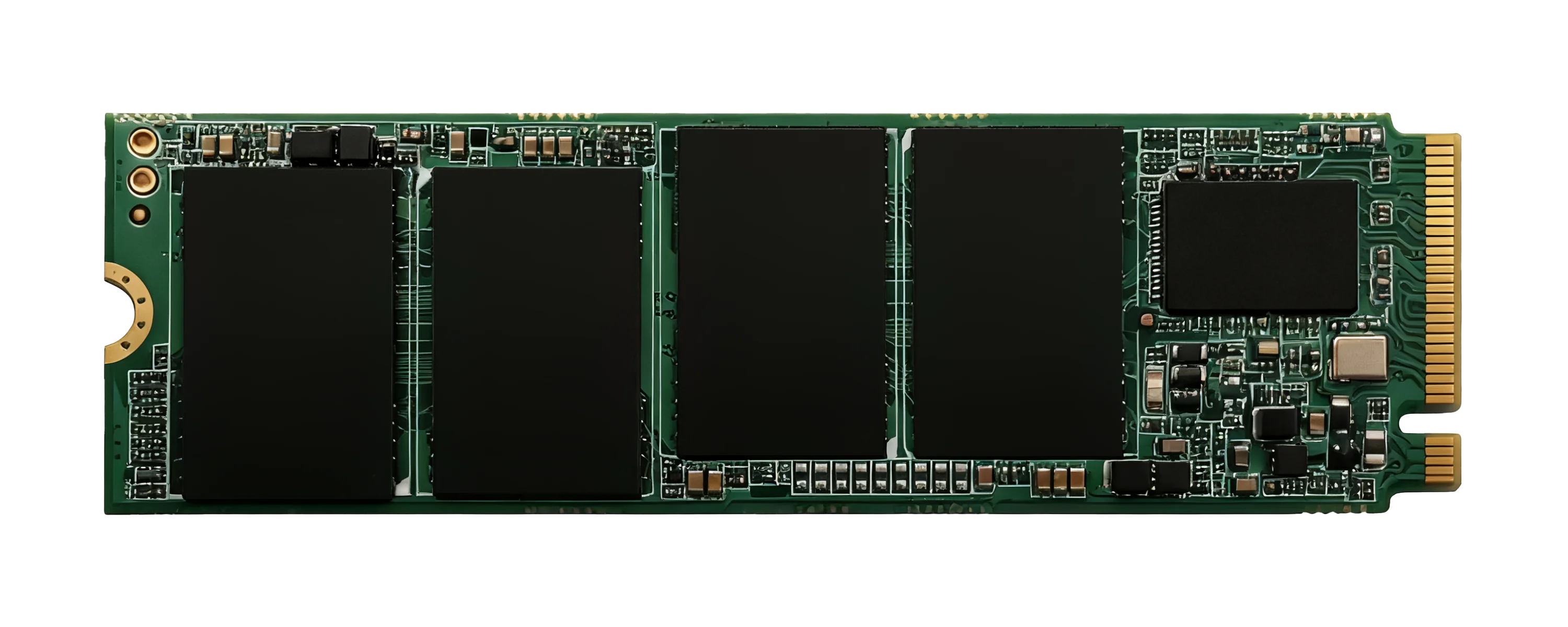

M.2 2280 NVMe SSD (Cacheless) · Commercial
Cacheless · High-performance NVMe
Key facts
What industrial buyers usually need to know first — before diving into the full datasheet.
5-year supply · 12-month EOL notice
Qualified SKUs stay available for long-lifecycle equipment — you get advance notice before any discontinuation.
MOQ from 1 pc
Prototype and repair lots without large inventory lock-in — then scale to production.
BOM review & firmware fit
We help match incumbent PNs, validate drop-in paths, and can adjust firmware / grade when the catalog needs a tweak.
5-year warranty · 4–8 weeks lead time
Stable production scheduling with a typical 4–8 weeks lead time once configuration and forecast are agreed.
| MOQ | From 1 pc |
|---|---|
| Standard lead time | 4–8 weeks (typical; confirm with sales for your configuration) |
| Warranty | 5 years (see /warranty for tier details) |
| Supply commitment | Minimum 5 years for qualified SKUs · 12-month EOL notice |
| Engineering support | BOM review, drop-in / fit checks, firmware and temperature-grade adaptation on request |
| Samples | Available on request |
Overview
High-performance Enterprise M.2 SSD with NVMe Protocol. Equipped with PCIe 3.0 ×4 lane and NVMe 1.4 protocol, it boasts a sequential read speed of up to 1500MB/s and sequential write speed of 1200MB/s, which is over 3 times faster than traditional SATA hard drives. It is ideal for high-performance workstations, data-intensive office tasks, video editing and 3D modeling applications. The 2TB version supports a wide temperature range of -20℃ to 70℃.
Specifications
| Interface | M.2 2280 PCIe 3.0×4 |
|---|---|
| Protocol Standard | NVMe 1.4 |
| Package | 22mm×80mm×2.3mm |
| Capacity Options | 128GB/256GB/512GB/1TB/2TB |
| Operating temperature | 0℃-70℃(-20℃-70℃ for 2TB) |
| Storage temperature | -40℃-85℃ |
| Read Speed | Up to 1500MB/s |
| Write Speed | Up to 1200MB/s |
| Cache Type | Dramless (Virtual Cache Algorithm) |
| Power Loss Protection | 12ms Power Loss Delay Design |
| Warranty Period | 5 Years |
| Dimensions | 80mm×22mm×≤5mm |
| Usable Capacity | 476GB/953GB/1.86TB |
| Supported Features | Wear Leveling Algorithm, TRIM/NCQ/S.M.A.R.T |
| Weight | ＜20g |
Orderable part numbers
Handbook PNs for this page. Confirm package, temperature bin, and speed grade before production.
| Part number | Grade | Summary |
|---|---|---|
YIDJ01TNXT-S |
Commercial | 1TB · China-localized · TLC · -40℃~+85℃ |
YIDJ01TNZT-S |
Commercial | 1 TB · ≥2200/≥1400 MB/s · TBW 720 TB |
YIDJ02TNZT-S |
Commercial | 2 TB · ≥2500/≥1800 MB/s · TBW 1400 TB |
YIDJ256NXT-S |
Commercial | 256GB · China-localized · TLC · -40℃~+85℃ |
YIDJ256NZT-S |
Commercial | 256 GB · ≥1500/≥700 MB/s · TBW 180 TB |
YIDJ512NXT-S |
Commercial | 512GB · China-localized · TLC · -40℃~+85℃ |
YIDJ512NZT-S |
Commercial | 512 GB · ≥2000/≥900 MB/s · TBW 360 TB |
Cross-references
No verified one-to-one vendor PN is published for this SKU yet. Browse the part-number catalog or contact engineering for BOM matching.
Compliance & Standards
Quality and release processes for Loongtion industrial memory and storage. Formal certificates and scope statements are available in the quotation pack on request.
Quality management system
-
ISO 9001:2015 certified (GB/T 19001-2016)
Quality management systems — Requirements. Certified quality system covering semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
-
Conforms to GJB 9001C—2017
Quality management systems — Requirements. Quality system practices conform to GJB 9001C for the same scope: semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
Product & interface standards
This catalog SKU follows the industry specifications that define its form factor and host interface.
-
Industry SSD host interfaces
Host interface, command set, and form-factor behavior follow the applicable SATA, NVMe, or eMMC specification listed on the datasheet.
-
NVM Express (NVMe)
Command set and PCIe-attached storage behavior conform to the NVMe specification revision applicable to the listed SKU.
-
PCI Express
Physical and link-layer attachment follows the PCIe generation and lane width stated on the datasheet (for example PCIe 3.0 ×4).
Grade wording: Product grade definition.
Key highlights
Advanced technical architecture ensures stable performance in various application environments.
-
PCIe 3.0 ×4 Lane
NVMe 1.4 Protocol, Sequential Read: 1500MB/s
-
Delivers over 3x higher
performance than SATA drives, significantly boosting efficiency
-
2TB version supports a wide
temperature range of -20℃ to 70℃, adapting to harsher environments
-
Built-in short circuit
and undervoltage protection, ensures data security
-
Supports TRIM/NCQ/S.M.A.R.T
features for intelligent management
Typical applications
Real customer application scenarios validate the reliability and practicality of products.
High-Performance Workstation
Used as workstations for CAD/CAM designers, it significantly increases the loading and rendering speed of large 3D models. After adoption by an automotive design company, the vehicle modeling and rendering time was reduced from 45 minutes to 15 minutes, improving work efficiency by 200%.
- Significantly increases 3D modeling and rendering speed
- Reduces waiting time and improves work efficiency
- Stable performance ensures the security of design data
Video Editing Workstation
Used by 4K video editors to process high-bitrate materials, the continuous read speed of 1500MB/s significantly improves the response speed of material import and preview. It supports multi-track real-time preview, increasing editing smoothness by 300%.
- Significantly increases material import and preview speed
- Supports multi-track real-time preview
- High stability ensures the security of project files
