2.5" SATA SSD (Cacheless)

Dramless · Made in China · Operating Temperature: -40℃~+85℃

Designed specifically for industrial applications, this 2.5-inch SATA interface solid-state drive adopts a DRAM-less (Dramless) architecture, features a mid-to-high quality design, is equipped with high-quality original factory TLC NAND Flash storage media, has a reserved interface for the soft self-destruction function, and ensures Industrial stability and security.

Operating Temperature
-40℃~+85℃
Capacity Range
128GB-8TB
Download Manuals

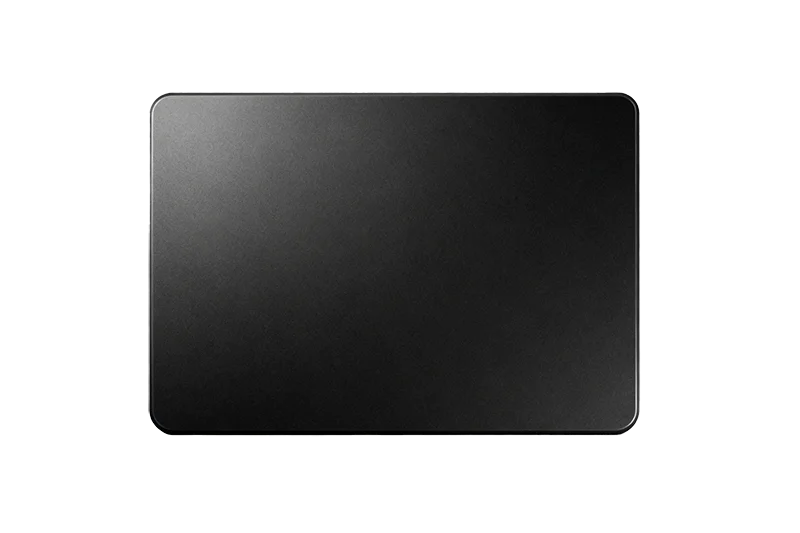

2.5" SATA SSD (Cacheless) — product image
Product Features

Highly Reliable Storage Solution Designed Exclusively for the Industrial Sector

Advanced Industrial architecture ensures stable performance in harsh environments

1

Interface Protocol: Compatible with SATA III 6Gbps protocol, adopts standard SATA gold finger interface (gold plating thickness 3u) to ensure long-term connection stability

2

Weather Resistance: Industrial wide operating temperature range of -40℃~+85℃, storage temperature range of -45℃~+90℃, capable of withstanding complex industrial temperature variation environments

3

Function Protection: Supports software destruction function, with reserved software self-destruction interface; equipped with 12ms power-off delay protection, together with short-circuit protection and undervoltage protection

4

Performance: Maximum sequential read speed up to 520MB/s (8TB version), maximum sequential write speed up to 480MB/s (8TB version)

5

System Compatibility: Compatible with mainstream and high-quality operating systems such as Linux, Windows, and Kylin OS, seamlessly integrates with industrial control platforms and high-quality motherboards

Technical Advantages

Strong Industrial Technical Strength

Deeply optimized core technologies provide reliable assurance for Industrial applications.

1

High-quality Design, with high-quality solutions applied to main controller, flash memory and components

2

Total Terabytes Written (TBW) with a tolerance of ±10%: approx. 300TB for 128GB, approx. 18,000TB for 8TB; Mean Time Between Failures (MTBF) reaches the million-hour level

3

5-year warranty, supports 7×24-hour continuous operation

4

Reserved interface for soft self-destruction function, meets security and compliance requirements

Technical Specifications

Detailed Technical Parameters and Performance Indicators

Strict Industrial technical standards ensure product performance and quality.

Product Specifications

Interface Type
SATA III 6Gb/s
Dimension Specification
2.5-inch (100mm×70mm×≤7mm)
Capacity Options
128GB/256GB/512GB/1TB/2TB/4TB/8TB
Operating Temperature
-40℃~+85℃
Storage Temperature
-45℃~+90℃
Read Speed
Up to 520MB/s (8TB Version)
Write Speed
Up to 480MB/s (8TB Version)
Cache Type
Dramless (No Cache)
Flash Type
TLC (High-Quality)
Interface Design
Gold-Plated 3μ Gold Finger Interface
Supported Features
TRIM/NCQ/S.M.A.R.T, Soft Self-Destruct Function Interface
Power Loss Protection
12ms Power Loss Delay Protection
Power Protection
Short Circuit Protection and Undervoltage Protection
Operating Power Consumption
128GB≤1.5W / 256GB≤2.0W / 512GB≤3.5W / 1TB≤4.3W / 2TB≤5W / 4TB≤7W / 8TB≤12W
TBW
128GB Approx. 300TB / 256GB Approx. 590TB / 512GB Approx. 1100TB / 1TB Approx. 2300TB / 2TB Approx. 4700TB / 4TB Approx. 9200TB / 8TB Approx. 18000TB
MTBF
Million-Hour Grade
Warranty Period
5 Years
Application Cases

Practical Cases Successfully Applied in Industrial Fields

Real industrial application scenarios to verify the reliability and practicality of products

1

Industrial Automation Production Line Control Host Storage

Applied to control hosts of industrial automation production lines, it operates stably in a wide temperature range of -40℃~+85℃, supports 7×24-hour continuous operation, and ensures data security of production lines.

Application Effects

  • Wide operating temperature range adapts to complex industrial environments
  • High quality meets safety and compliance requirements
  • High reliability ensures continuous operation of production lines
2

Local Data Storage for High-quality Medical Diagnostic Equipment

Used for local data storage of high-quality medical diagnostic equipment, it supports the Galaxy Kylin Operating System, and reserves a soft self-destruction function to ensure the security of patients' private data.

Application Effects

  • High quality with strong compatibility, compatible with high-quality operating systems
  • Controllable data security, supports soft self-destruction function
  • High stability ensures the integrity of medical data
