mSATA SSD (Cacheless)

Cacheless · Compact · Operating Temperature -40℃~+85℃

Compact mSATA Form Factor Industrial SSD, featuring a cache-less design. Measuring just 50mm×30mm, it delivers Industrial high-reliability storage and is specially compatible with space-constrained embedded industrial equipment and special-purpose hardware.

Operating Temperature
-40℃~+85℃
Capacity Range
256GB-2TB
Download Manuals

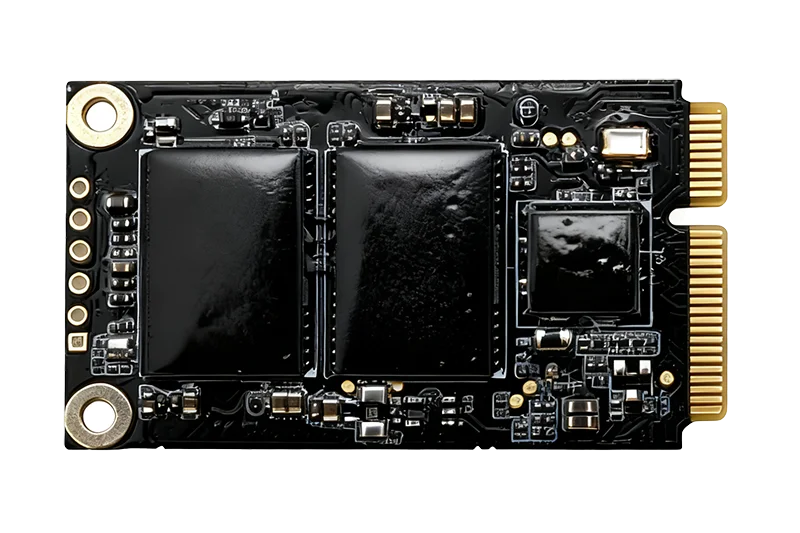

mSATA SSD (Cacheless) — product image
Product Features

Compact Industrial Storage Solution

Compact size, compatible with space-constrained embedded devices

1

Form Factor Advantages: Compact design, supports multi-bay high-density deployment, saves internal space of industrial equipment

2

Interface Protocol: Complies with mSATA specification, compatible with SATA III 6Gbps protocol, gold-plated interface ensures corrosion resistance and connection stability

3

Environmental Resistance: Operates in a wide temperature range of -40℃~+85℃, with anti-electromagnetic interference capability, suitable for complex industrial workshop environments

4

Performance & Capacity: Capacity ranges from 256GB to 2TB, maximum sequential read speed up to 450MB/s, maximum sequential write speed up to 400MB/s

5

Function Support: Supports TRIM/NCQ/S.M.A.R.T functions, supports one-click software destruction, and ensures controllable data security

Technical Advantages

Solid Industrial Technical Strength

Deeply optimized core technologies provide reliable assurance for Industrial applications.

1

Compact size of 50mm×30mm, compatible with space-constrained devices

2

Gold-plated interface for corrosion resistance, ensuring long-term connection stability

3

Supports multi-bay high-density deployment, enhancing storage expansion capability

4

One-click software destruction, meeting data security requirements

Technical Specifications

Detailed Technical Parameters and Performance Indicators

Strict Industrial technical standards to ensure product performance and quality

Product Specifications

Interface Type
mSATA (SATA III 6Gb/s)
Form Factor
50mm×30mm×≤5mm
Capacity Options
256GB/512GB/1TB/2TB
Operating Temperature
-40℃~+85℃
Storage Temperature
-45℃~+90℃
Read Speed
Up to 450MB/s
Write Speed
Up to 400MB/s
Cache Type
Dramless (No Cache)
Flash Type
TLC
Interface Design
Gold-plated Interface
Supported Features
TRIM/NCQ/S.M.A.R.T, One-click Software Destruction
Anti-interference Capability
Electromagnetic Interference Resistance
Warranty Period
5 Years
Application Cases

Practical cases successfully applied in the industrial field

Real-world industrial application scenarios verify the reliability and practicality of products.

1

Embedded Storage for Shipborne Video Capture Devices

Applied to shipborne video capture devices, its compact size is compatible with narrow spaces, and it has strong anti-electromagnetic interference capability.

Application Effects

  • Miniaturized design compatible with special equipment
  • Strong anti-electromagnetic interference capability
  • Wide-temperature operation suitable for marine environments
2

High-Speed AD Data Acquisition and Storage Board

Used for high-speed AD data acquisition boards, the gold-plated interface ensures signal integrity and supports high-frequency data writing.

Application Effects

  • Gold-plated interface ensures signal quality
  • High-speed reading and writing meets data acquisition requirements
  • Compact design saves board space
