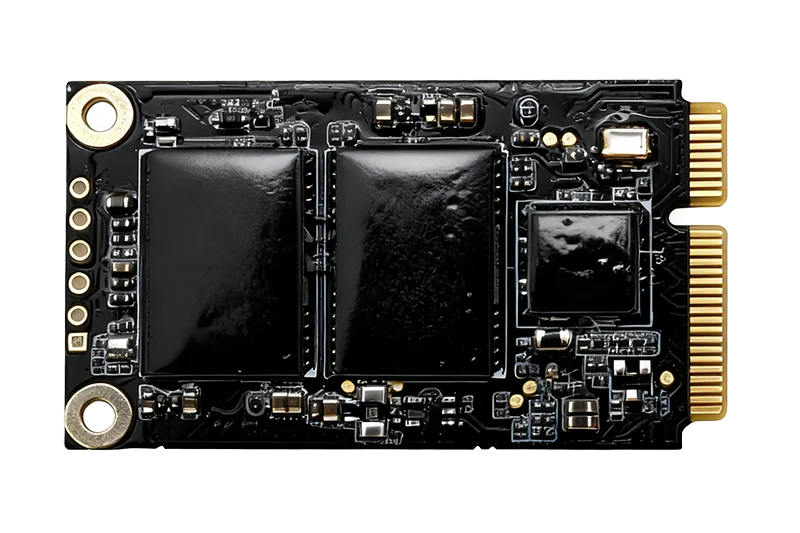

mSATA SSD · CN · Extreme
Domestic pSLC · GJB-STD
Key facts
What industrial buyers usually need to know first — before diving into the full datasheet.
5-year supply · 12-month EOL notice
Qualified SKUs stay available for long-lifecycle equipment — you get advance notice before any discontinuation.
MOQ from 1 pc
Prototype and repair lots without large inventory lock-in — then scale to production.
BOM review & firmware fit
We help match incumbent PNs, validate drop-in paths, and can adjust firmware / grade when the catalog needs a tweak.
5-year warranty · 4–8 weeks lead time
Stable production scheduling with a typical 4–8 weeks lead time once configuration and forecast are agreed.
| MOQ | From 1 pc |
|---|---|
| Standard lead time | 4–8 weeks (typical; confirm with sales for your configuration) |
| Warranty | 5 years (see /warranty for tier details) |
| Supply commitment | Minimum 5 years for qualified SKUs · 12-month EOL notice |
| Engineering support | BOM review, drop-in / fit checks, firmware and temperature-grade adaptation on request |
| Samples | Available on request |
Overview
100% China-localized mSATA SSD (YMDE*KS*) in pSLC mode for GJB-STD extreme-temperature bins (−55°C to +95°C). For harsh-environment hosts that need domestic supply plus elevated temperature screening beyond industrial wide-temp.
Specifications
| Interface | mSATA (SATA) |
|---|---|
| Package | mSATA |
| Supply option | China-localized (CN) |
| Flash | pSLC |
| Cache | Dramless |
| Operating temperature | −55°C to +95°C |
| Capacity | 32GB / 64GB / 128GB / 256GB |
| PN family | YMDE*KS*-S |
| Grade | GJB-STD extreme-temp |
Orderable part numbers
Handbook PNs for this page. Confirm package, temperature bin, and speed grade before production.
| Part number | Grade | Summary |
|---|---|---|
YMDE032SKS-S |
GJB-STD | 32GB · China-localized · pSLC · -55℃~+95℃ |
YMDE064SKS-S |
GJB-STD | 64GB · China-localized · pSLC · -55℃~+95℃ |
YMDE128SKS-S |
GJB-STD | 128GB · China-localized · pSLC · -55℃~+95℃ |
YMDE256SKS-S |
GJB-STD | 256GB · China-localized · pSLC · -55℃~+95℃ |
Cross-references
No verified one-to-one vendor PN is published for this SKU yet. Browse the part-number catalog or contact engineering for BOM matching.
Compliance & Standards
Quality and release processes for Loongtion industrial memory and storage. Formal certificates and scope statements are available in the quotation pack on request.
Quality management system
-
ISO 9001:2015 certified (GB/T 19001-2016)
Quality management systems — Requirements. Certified quality system covering semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
-
Conforms to GJB 9001C—2017
Quality management systems — Requirements. Quality system practices conform to GJB 9001C for the same scope: semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
Environmental methods (GJB-STD)
For Extreme-temp / GJB-STD SKUs, environmental planning and screening reference the following methods. This is not a claim of third-party product certification under these standards.
-
GJB 150A (aligned with MIL-STD-810 methods)
Military equipment laboratory environmental test methods. GJB-STD SKUs are designed and screened with reference to GJB 150A; it is the Chinese military counterpart commonly mapped to MIL-STD-810 style environmental methods.
Product & interface standards
This catalog SKU follows the industry specifications that define its form factor and host interface.
-
Industry SSD host interfaces
Host interface, command set, and form-factor behavior follow the applicable SATA, NVMe, or eMMC specification listed on the datasheet.
-
Serial ATA (SATA)
SATA interface timing and command set follow the SATA revision applicable to the listed SKU (commonly SATA III).
Grade wording: Product grade definition.
Key highlights
What matters for BOM review and board bring-up.
-
GJB-STD extreme-temp
−55°C to +95°C operating bins for sealed and outdoor harsh duty.
-
Domestic pSLC
YMDE*KS* pSLC family with China-localized supply (CN).
-
Higher endurance class
pSLC mode for write-intensive industrial and special-purpose workloads.
-
mSATA footprint
Same mSATA form factor as wide-temp CN SKUs — confirm temperature bin on the orderable PN.
Typical applications
Where this SKU is commonly designed in.
Harsh-environment embedded
Vehicle, outdoor cabinet, and plant-floor systems below −40°C.
- −55°C low-end rating
- CN + GJB-STD labeling
- Validate host thermal design
CN + GJB-STD programs
Projects that need both domestic supply and elevated temperature screening.
- YMDE*KS* handbook PNs
- pSLC endurance
- Confirm capacity vs TLC wide-temp ladder
Related products
eMMC Storage Chip
- NAND Flash and controller
- Complies with the eMMC 5.1
- Operates over a wide
M.2 2242 NVMe SSD (Cacheless)
- Dimensions
- Capacities from 512GB to 1TB
- Compatible with Industrial
M.2 2280 NVMe SSD (Cacheless) · Wide-temp
- PCIe 3.0×4 Lanes
- Supports TRIM/NCQ/S.M.A.R.T
- Compatible with Industrial
M.2 2280 NVMe SSD (With Cache) · Wide-temp
- Independent DRAM cache
- PCIe 3.0×4 lane
- Compatible with Industrial
Product grade definition
What "GJB-standard" means on this website
How we use this label on our site: reliability tier, documentation, and use-case boundaries.
On this website, "GJB-standard" refers to a higher-reliability product tier within our portfolio. It emphasizes environmental robustness, reliability validation, and manufacturing/quality controls that exceed typical consumer-grade products and, where stated for a given SKU, exceed the baseline of our standard Industrial offerings. This label is used to reduce confusion between product grades and does not constitute a representation that any product is suitable for any particular application, including military end-use.
Any differences versus Industrial are defined per SKU in the applicable datasheet / technical documentation (for example: wider operating temperature, stricter mechanical/climatic stress validation, tighter consistency and traceability controls, where applicable).
GJB (if referenced for a product): applicable clauses, test items, and whether requirements apply to product specifications versus management system certification scope are governed solely by that product's technical documentation and, where applicable, the scope of certification. For additional documentation, please contact us (additional materials may be provided under NDA or after customer qualification, as applicable).
