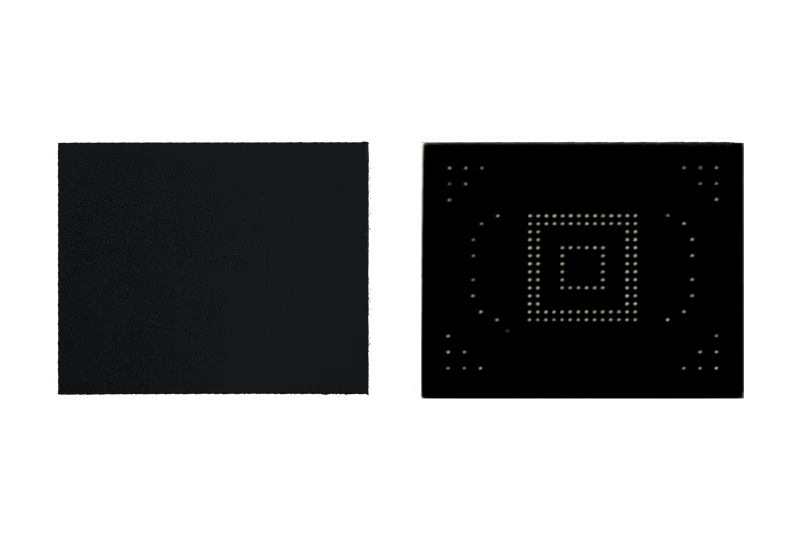

SATA BGA SSD · Extreme
FBGA156 Package
Key facts
What industrial buyers usually need to know first — before diving into the full datasheet.
5-year supply · 12-month EOL notice
Qualified SKUs stay available for long-lifecycle equipment — you get advance notice before any discontinuation.
MOQ from 1 pc
Prototype and repair lots without large inventory lock-in — then scale to production.
BOM review & firmware fit
We help match incumbent PNs, validate drop-in paths, and can adjust firmware / grade when the catalog needs a tweak.
5-year warranty · 4–8 weeks lead time
Stable production scheduling with a typical 4–8 weeks lead time once configuration and forecast are agreed.
| MOQ | From 1 pc |
|---|---|
| Standard lead time | 4–8 weeks (typical; confirm with sales for your configuration) |
| Warranty | 5 years (see /warranty for tier details) |
| Supply commitment | Minimum 5 years for qualified SKUs · 12-month EOL notice |
| Engineering support | BOM review, drop-in / fit checks, firmware and temperature-grade adaptation on request |
| Samples | Available on request |
Overview
Fully Domestic SATA BGA SSD adopts multi-chip packaging technology, features a SATA III 6Gbps interface, boasts a sequential read speed of up to 450MB/s, supports ultra-wide temperature operation ranging from -55℃ to 105℃, and enables in-situ replacement of uSSD chips from Taiwan Phison's solution.
Specifications
| Interface | SATA III 6Gb/s |
|---|---|
| Package | FBGA156 |
| Physical Dimensions | 16.0mm×20.0mm×1.9mm |
| Capacity Options | 32GB/64GB/128GB/256GB |
| Operating temperature | −55°C to +95°C |
| Storage temperature | -45℃~90℃ |
| Supply voltage | VCC 3.3V |
| Flash Type | TLC (High Quality) |
| Read Speed | Up to 450MB/s |
| Write Speed | Up to 350MB/s |
| Compatibility | Pin-to-pin replacement for Phison Taiwan's uSSD chip solution |
| System Compatibility | Multiple systems including VxWorks, Linux, Windows NT/XP, etc. |
| Reliability Standard | Environmental testing and reliability meet relevant specification requirements |
| Warranty Period | 5-year warranty service |
Orderable part numbers
Handbook PNs for this page. Confirm package, temperature bin, and speed grade before production.
| Part number | Grade | Summary |
|---|---|---|
YIDN01TSKT-S |
Wide-temp | 1TB · TLC · -40℃~+85℃ |
YIDN032SKS-S |
GJB-STD | 32GB · pSLC · -55℃~+95℃ |
YIDN064SKS-S |
GJB-STD | 64GB · pSLC · -55℃~+95℃ |
YIDN128SKS-S |
GJB-STD | 128GB · pSLC · -55℃~+95℃ |
YIDN128SKT-S |
Wide-temp | 128GB · TLC · -40℃~+85℃· xref Phison PSS5A324-X28 |
YIDN256SKT-S |
Wide-temp | 256GB · TLC · -40℃~+85℃ |
YIDN512SKT-S |
Wide-temp | 512GB · TLC · -40℃~+85℃ |
Cross-references
Vendor families for BOM exploration. Always validate ball map, speed bin, and temperature grade on your host.
Compliance & Standards
Quality and release processes for Loongtion industrial memory and storage. Formal certificates and scope statements are available in the quotation pack on request.
Quality management system
-
ISO 9001:2015 certified (GB/T 19001-2016)
Quality management systems — Requirements. Certified quality system covering semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
-
Conforms to GJB 9001C—2017
Quality management systems — Requirements. Quality system practices conform to GJB 9001C for the same scope: semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
Environmental methods (GJB-STD)
For Extreme-temp / GJB-STD SKUs, environmental planning and screening reference the following methods. This is not a claim of third-party product certification under these standards.
-
GJB 150A (aligned with MIL-STD-810 methods)
Military equipment laboratory environmental test methods. GJB-STD SKUs are designed and screened with reference to GJB 150A; it is the Chinese military counterpart commonly mapped to MIL-STD-810 style environmental methods.
Product & interface standards
This catalog SKU follows the industry specifications that define its form factor and host interface.
-
Industry SSD host interfaces
Host interface, command set, and form-factor behavior follow the applicable SATA, NVMe, or eMMC specification listed on the datasheet.
-
Serial ATA (SATA)
SATA interface timing and command set follow the SATA revision applicable to the listed SKU (commonly SATA III).
Grade wording: Product grade definition.
Key highlights
Military-spec High-quality Chip-level Storage Solution
-
Adopts multi-chip packaging
technology features high-density integration and high quality, and can provide high-quality certification
-
SATA III 6Gbps interface
sequential read speed up to 450MB/s, sequential write speed up to 350MB/s
-
Operating temperature
−55℃~+95℃, storage temperature: -45℃~90℃, excellent high and low temperature resistance
-
Can replace the uSSD chip
of Taiwan Phison solution in-situ, supports multiple systems including VxWorks, Linux, Windows NT/XP, etc.
-
Environmental testing
and reliability meet the requirements of relevant specifications
Typical applications
Embedded Scenario Validation
Embedded Industrial Devices
Applied to Embedded Industrial Devices, featuring high-density integration to save space, and high quality meeting high reliability requirements.
- High-density integration saves space
- High quality and high reliability
- Ultra-wide temperature range for harsh environments
Small Specialized Storage Terminals
Used in Small Specialized Storage Terminals, can replace Phison solutions in-situ, with strong environmental adaptability.
- Replaceable Phison Solutions
- Strong Environmental Adaptability
