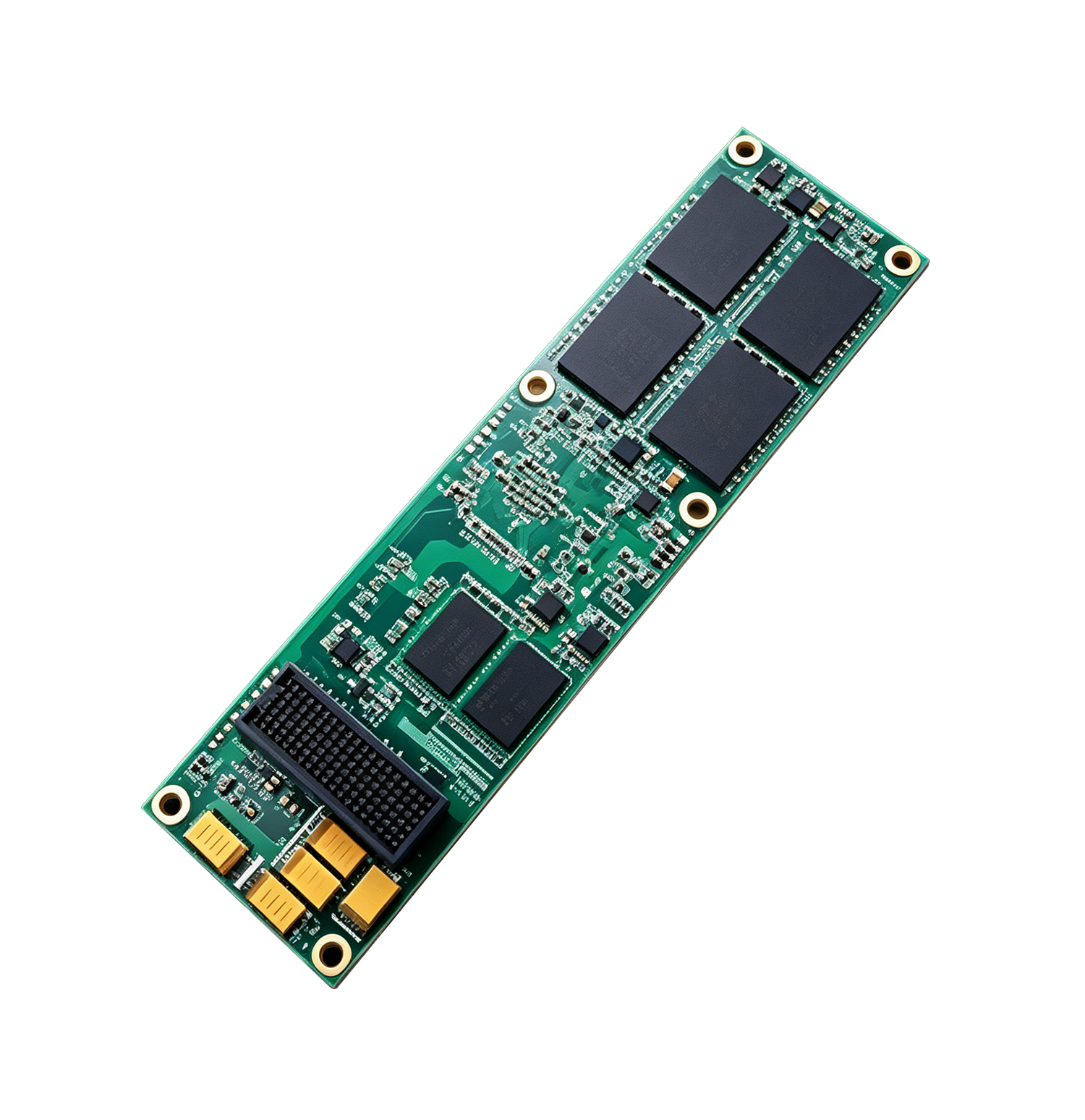

XMC Rugged NVMe SSD
XMC Standard Ruggedization · Enterprise & Industrial Gra…
Key facts
What industrial buyers usually need to know first — before diving into the full datasheet.
5-year supply · 12-month EOL notice
Qualified SKUs stay available for long-lifecycle equipment — you get advance notice before any discontinuation.
MOQ from 1 pc
Prototype and repair lots without large inventory lock-in — then scale to production.
BOM review & firmware fit
We help match incumbent PNs, validate drop-in paths, and can adjust firmware / grade when the catalog needs a tweak.
5-year warranty · 4–8 weeks lead time
Stable production scheduling with a typical 4–8 weeks lead time once configuration and forecast are agreed.
| MOQ | From 1 pc |
|---|---|
| Standard lead time | 4–8 weeks (typical; confirm with sales for your configuration) |
| Warranty | 5 years (see /warranty for tier details) |
| Supply commitment | Minimum 5 years for qualified SKUs · 12-month EOL notice |
| Engineering support | BOM review, drop-in / fit checks, firmware and temperature-grade adaptation on request |
| Samples | Available on request |
Overview

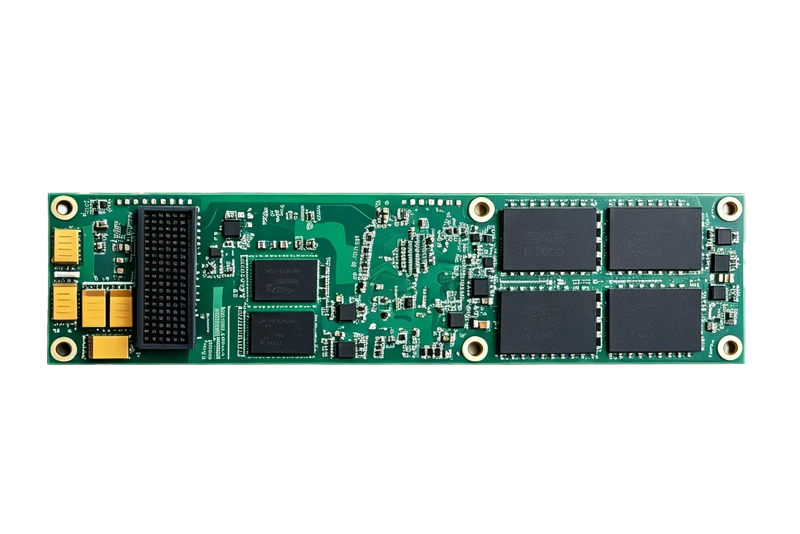

XMC rugged NVMe SSD with standard XMC modular structure and metal rugged packaging. PCIe NVMe high-speed interface with strong vibration and shock resistance. Enterprise-grade SKUs operate from -20°C to +70°C; industrial wide-temperature SKUs from -40°C to +85°C for in-vehicle, railway, telecom edge, and other harsh embedded platforms.
Specifications
| Interface | XMC / PCIe Gen3×4 (NVMe) |
|---|---|
| Structure Type | Standard XMC Rugged Module |
| Capacity Option | 128GB/256GB/512GB/1TB/2TB/4TB/8TB/2TB |
| Operating temperature | -20℃~+70℃ / -40℃~+85℃ |
| Storage temperature | -45℃~+95℃ |
| Read Speed | Up to 1500MB/s |
| Write Speed | Up to 1200MB/s |
| Shock Resistance | 20,000g Acceleration |
| Rugged Process | Full Metal + Potting Ruggedization |
| System Compatibility | VxWorks, Linux, Domestic Embedded Systems |
| Warranty Period | 5 Years |
Orderable part numbers
Handbook PNs for this page. Confirm package, temperature bin, and speed grade before production.
| Part number | Grade | Summary |
|---|---|---|
YCDJ02THQT-S |
Commercial | 2TB · -20℃~+70℃ |
YCDJ04THQT-S |
Commercial | 4TB · -20℃~+70℃ |
YCDJ08THQT-S |
Commercial | 8TB · -20℃~+70℃ |
YIDJ01THQS-D |
Wide-temp | 1TB · -40℃~+85℃ |
YIDJ512HQS-D |
Wide-temp | 512GB · -40℃~+85℃ |
Cross-references
No verified one-to-one vendor PN is published for this SKU yet. Browse the part-number catalog or contact engineering for BOM matching.
Compliance & Standards
Quality and release processes for Loongtion industrial memory and storage. Formal certificates and scope statements are available in the quotation pack on request.
Quality management system
-
ISO 9001:2015 certified (GB/T 19001-2016)
Quality management systems — Requirements. Certified quality system covering semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
-
Conforms to GJB 9001C—2017
Quality management systems — Requirements. Quality system practices conform to GJB 9001C for the same scope: semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
Product & interface standards
This catalog SKU follows the industry specifications that define its form factor and host interface.
-
Industry SSD host interfaces
Host interface, command set, and form-factor behavior follow the applicable SATA, NVMe, or eMMC specification listed on the datasheet.
-
NVM Express (NVMe)
Command set and PCIe-attached storage behavior conform to the NVMe specification revision applicable to the listed SKU.
-
PCI Express
Physical and link-layer attachment follows the PCIe generation and lane width stated on the datasheet (for example PCIe 3.0 ×4).
Grade wording: Product grade definition.
Key highlights
Modular rugged design for embedded platforms in vehicle, telecom, and outdoor industrial environments. Confirm grade and temperature band per part number.
-
Standard XMC modular
structure with full metal ruggedization
-
PCIe NVMe high-speed
transmission interface
-
Strong vibration and shock
resistance for field deployment
-
Enterprise (-20°C to +70°C)
and industrial wide-temperature (-40°C to +85°C) grades available
-
Standard XMC form factor
easy integration and replacement
Typical applications
Typical Applications of XMC Rugged NVMe SSD
In-Vehicle/Shipborne/Airborne Data Recording Equipment
Used in in-vehicle, shipborne, and airborne data recording and storage, ruggedized structure ensures stable operation in high-vibration environments.
- XMC standard easy integration
- Ruggedized anti-vibration and shock
- Wide temperature ensures stable operation without disconnection
Special Measurement & Control & High-Speed Acquisition Equipment
Used in high-speed data acquisition and special measurement & control equipment, meeting large-capacity high-speed storage needs in harsh environments.
- NVMe high-speed read/write
- Wide-temperature industrial reliability
- Compatible with XMC standard platforms
