SATA BGA SSD · Wide-temp · CN
High-density Storage
Key facts
What industrial buyers usually need to know first — before diving into the full datasheet.
5-year supply · 12-month EOL notice
Qualified SKUs stay available for long-lifecycle equipment — you get advance notice before any discontinuation.
MOQ from 1 pc
Prototype and repair lots without large inventory lock-in — then scale to production.
BOM review & firmware fit
We help match incumbent PNs, validate drop-in paths, and can adjust firmware / grade when the catalog needs a tweak.
5-year warranty · 4–8 weeks lead time
Stable production scheduling with a typical 4–8 weeks lead time once configuration and forecast are agreed.
| MOQ | From 1 pc |
|---|---|
| Standard lead time | 4–8 weeks (typical; confirm with sales for your configuration) |
| Warranty | 5 years (see /warranty for tier details) |
| Supply commitment | Minimum 5 years for qualified SKUs · 12-month EOL notice |
| Engineering support | BOM review, drop-in / fit checks, firmware and temperature-grade adaptation on request |
| Samples | Available on request |
Overview

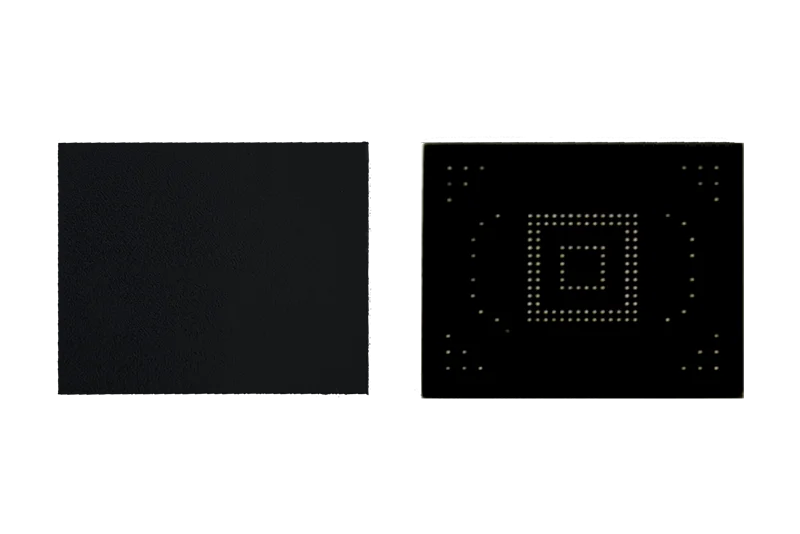

High-quality, high-density integrated SATA BGA SSD chips, adopting multi-chip packaging technology, are compact in size, low in power consumption, and compatible with industrial embedded devices.
Specifications
| Interface | SATA III 6Gb/s |
|---|---|
| Package | FBGA156 |
| Dimension Specification | 16.0mm×20.0mm×1.9mm |
| Capacity Options | 128GB/256GB/512GB/1TB |
| Operating temperature | -40℃~+85℃ |
| Storage temperature | -45℃~+90℃ |
| Read Speed | Up to 450MB/s |
| Write Speed | Up to 350MB/s |
| Warranty Period | 5 Years |
Orderable part numbers
Handbook PNs for this page. Confirm package, temperature bin, and speed grade before production.
| Part number | Grade | Summary |
|---|---|---|
YIDN01TSKT-S |
Wide-temp | 1TB · TLC · -40℃~+85℃ |
YIDN128SKT-S |
Wide-temp | 128GB · TLC · -40℃~+85℃· xref Phison PSS5A324-X28 |
YIDN256SKT-S |
Wide-temp | 256GB · TLC · -40℃~+85℃ |
YIDN512SKT-S |
Wide-temp | 512GB · TLC · -40℃~+85℃ |
Cross-references
Vendor families for BOM exploration. Always validate ball map, speed bin, and temperature grade on your host.
Compliance & Standards
Quality and release processes for Loongtion industrial memory and storage. Formal certificates and scope statements are available in the quotation pack on request.
Quality management system
-
ISO 9001:2015 certified (GB/T 19001-2016)
Quality management systems — Requirements. Certified quality system covering semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
-
Conforms to GJB 9001C—2017
Quality management systems — Requirements. Quality system practices conform to GJB 9001C for the same scope: semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
Product & interface standards
This catalog SKU follows the industry specifications that define its form factor and host interface.
-
Industry SSD host interfaces
Host interface, command set, and form-factor behavior follow the applicable SATA, NVMe, or eMMC specification listed on the datasheet.
-
Serial ATA (SATA)
SATA interface timing and command set follow the SATA revision applicable to the listed SKU (commonly SATA III).
Grade wording: Product grade definition.
Key highlights
Advanced Industrial architecture, ensuring stable performance in harsh environments
-
High Quality from Component
Design to Packaging
-
SATA III 6Gbps Protocol
Sequential Read Speed Up to 450MB/s, Sequential Write Speed Up to 350MB/s
-
FBGA156 Package
Physical Dimensions 16.0mm×20.0mm×1.9mm, In-situ Replacement for Phison Taiwan's uSSD Chip Solution
-
Covers 128GB~1TB
Compatible with Compact Storage Requirements of High-Quality Industrial Equipment
Typical applications
Real industrial application scenarios verify the reliability and practicality of products.
High-Quality Industrial Embedded Motherboard Storage
Applied to high-quality industrial embedded motherboards, the high-quality solution meets high reliability requirements.
- High quality meets high reliability requirements
- Compact size compatible with embedded motherboards
