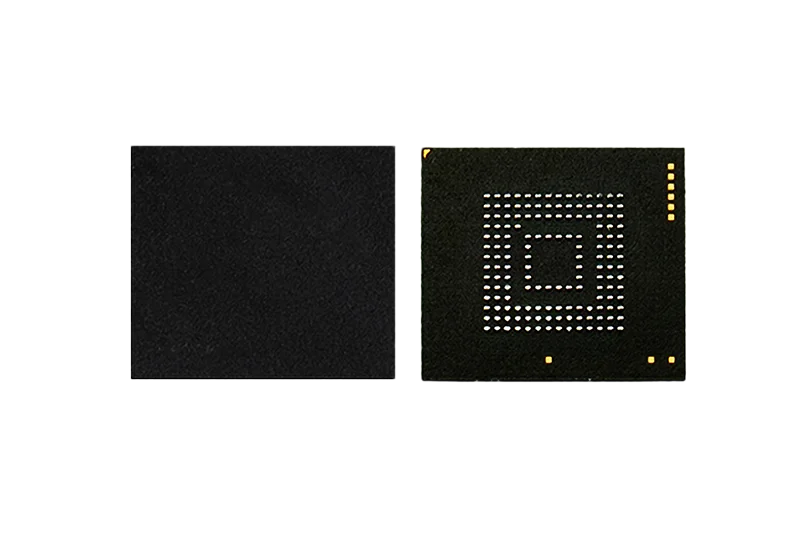

eMMC Storage Chip
Integrated eMMC 5.1 for embedded systems
Key facts
What industrial buyers usually need to know first — before diving into the full datasheet.
5-year supply · 12-month EOL notice
Qualified SKUs stay available for long-lifecycle equipment — you get advance notice before any discontinuation.
MOQ from 1 pc
Prototype and repair lots without large inventory lock-in — then scale to production.
BOM review & firmware fit
We help match incumbent PNs, validate drop-in paths, and can adjust firmware / grade when the catalog needs a tweak.
5-year warranty · 4–8 weeks lead time
Stable production scheduling with a typical 4–8 weeks lead time once configuration and forecast are agreed.
| MOQ | From 1 pc |
|---|---|
| Standard lead time | 4–8 weeks (typical; confirm with sales for your configuration) |
| Warranty | 5 years (see /warranty for tier details) |
| Supply commitment | Minimum 5 years for qualified SKUs · 12-month EOL notice |
| Engineering support | BOM review, drop-in / fit checks, firmware and temperature-grade adaptation on request |
| Samples | Available on request |
Overview
Industrial eMMC storage chip with integrated package of NAND flash memory and controller, adopting TLC flash type, featuring small size, low power consumption and high reliability, and compatible with industrial embedded systems and portable industrial devices.
Specifications
| Interface Standard | eMMC 5.1 |
|---|---|
| Package | 153FBGA |
| Capacity Options | 32GB/64GB/128GB/256GB |
| Operating temperature | -40℃~+85℃ |
| Storage temperature | -45℃~+90℃ |
| Clock Speed | Up to 400MHz |
| Power Supply Support | 3.3V/1.8V |
| Flash Type | TLC |
| Bus Width | 1/4/8-bit |
| Warranty Period | 5 years |
| Transfer Mode | SDR/DDR Dual Data Rate |
| Compatible Platforms | Compatible with high-quality Industrial platforms such as Loongson, Phytium, Rockchip, etc. |
Orderable part numbers
Handbook PNs for this page. Confirm package, temperature bin, and speed grade before production.
| Part number | Grade | Summary |
|---|---|---|
YIDL032MNT-S |
Wide-temp | 32GB · TLC · -40℃~+85℃· 153FBGA |
YIDL064MNT-S |
Wide-temp | 64GB · TLC · -40℃~+85℃· 153FBGA |
YIDL128MNT-S |
Wide-temp | 128GB · TLC · -40℃~+85℃· 153FBGA |
YIDL256MNT-S |
Wide-temp | 256GB · TLC · -40℃~+85℃· 153FBGA |
Cross-references
Vendor families for BOM exploration. Always validate ball map, speed bin, and temperature grade on your host.
Compliance & Standards
Quality and release processes for Loongtion industrial memory and storage. Formal certificates and scope statements are available in the quotation pack on request.
Quality management system
-
ISO 9001:2015 certified (GB/T 19001-2016)
Quality management systems — Requirements. Certified quality system covering semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
-
Conforms to GJB 9001C—2017
Quality management systems — Requirements. Quality system practices conform to GJB 9001C for the same scope: semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
Product & interface standards
This catalog SKU follows the industry specifications that define its form factor and host interface.
-
Industry SSD host interfaces
Host interface, command set, and form-factor behavior follow the applicable SATA, NVMe, or eMMC specification listed on the datasheet.
-
JEDEC eMMC
Embedded MultiMediaCard devices conform to the JEDEC eMMC specification revision listed on the datasheet (for example eMMC 5.1).
Grade wording: Product grade definition.
Key highlights
Integrated Packaged Industrial eMMC Storage Chip
-
NAND Flash and controller
are packaged in 153FBGA, appearing as a single chip, which simplifies the wiring of industrial equipment
-
Complies with the eMMC 5.1
standard with a clock speed of up to 400MHz, supporting SDR/DDR dual rates and 1/4/8-bit bus widths
-
Operates over a wide
temperature range of -40℃~+85℃, suitable for Industrial high and low temperature environments
-
Supports 3.3V/1.8V dual
power supplies compatible with high-quality Industrial platforms such as Loongson, Phytium, Rockchip
-
Covers capacities from 32GB
to 256GB meeting the small-capacity storage requirements of Industrial embedded scenarios
Typical applications
Embedded SoC boot and data storage for industrial HMI, POS, gateways and IoT devices requiring long lifecycle eMMC.
Rugged Industrial Handheld Device Based on RK3588 Platform
An Industrial handheld device applied to the RK3588 platform, with integrated design to simplify wiring and compatibility with portable devices.
- Integrated Design Compatible with Portable Devices
- Compatible with RK3588 Platform
- Low Power Consumption Extends Battery Life
Industrial Internet of Things (IIoT) Terminal Node Storage
Used for Industrial Internet of Things (IIoT) terminal nodes, its compact size and low power consumption meet the requirements of IoT devices.
- Compact Size Compatible with IoT Terminals
- Low Power Consumption Meets Long-Term Operation Requirements
- High Reliability Ensures Data Transmission
Series
-
Industrial eMMC
Industrial eMMC managed NAND.
Frequently asked questions
What is the operating temperature range of the Loongtion industrial eMMC?
Industrial eMMC (YIDL series TLC) is rated -40C to +85C; pSLC eMMC GJB variants are rated -55C to +105C for defense and aerospace applications.
What eMMC standard does it support?
eMMC 5.1 (HS400, 8-bit parallel interface) with managed NAND features - wear leveling, bad block management, and ECC handled inside the device.
What is the endurance of pSLC eMMC?
pSLC mode provides approximately 100,000 P/E cycles versus ~3,000 for TLC - a 30x endurance advantage for write-heavy logging workloads.
What is the lead time?
4-8 weeks for standard industrial orders.
