SD NAND

SD Interface · Wide-Temp -40℃~+85℃ · Long Lifespan

Industrial-grade SD NAND memory chip, adopting original factory wide-temperature flash memory particles and high-reliability packaging technology. It is compatible with standard SD interface timing, featuring wide-temperature stability, low power consumption, and long service life, designed for industrial embedded systems, miniaturized devices, and harsh-environment storage.

Operating Temperature
-40℃~+85℃
Capacity Range
1GB-32GB
Inquire Now Download Manuals

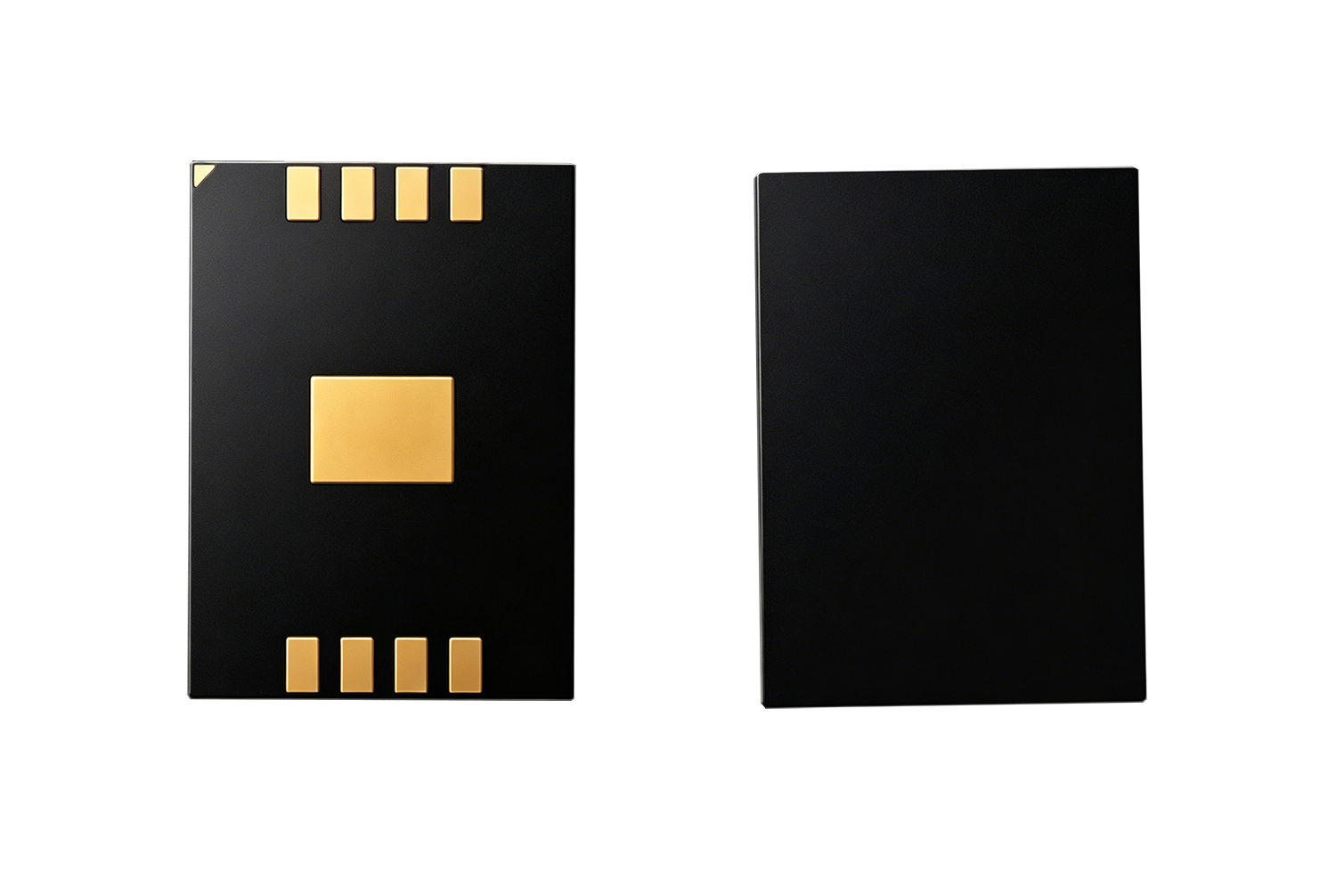

SD NAND — product image
Product Features

Industrial SD NAND Storage Solution

Standard SD interface, wide-temperature stability, miniaturized high reliability

1

Compatible with SD 3.0/2.0 standard interface, 1bit/4bit optional, direct replacement for general SD chips

2

-40℃~+85℃ wide-temperature operation, passed GJB150A environmental test, stable and anti-interference

3

1.8V/3.3V dual voltage, low-power design, suitable for fanless and portable devices

4

Original factory wide-temperature particles, longer service life, supports ECC and wear leveling algorithm

5

100% domestic solution optional, ZZKK certification applicable, meeting independent controllability requirements

Technical Advantages

Core Advantages of Industrial SD NAND

Miniaturized, Wide-Temp, High-Reliability Embedded SD Storage Solution

1

Standard SD interface, high compatibility, easy integration

2

-40℃~+85℃ wide temperature range, adaptable to harsh industrial environments

3

Low power consumption, long service life, high stability

4

Domestic + ZZKK certification, independent and controllable

Technical Specifications

Detailed Technical Specifications

Complete Parameters of Industrial SD NAND Memory Chip

Product Specifications

Interface Type
SD 3.0 / SD 2.0
Package Type
FBGA / SD Die
Capacity Configuration
1GB~32GB
Operating Temperature
-40℃~+85℃
Storage Temperature
-45℃~+90℃
Bus Width
1bit / 4bit
Supply Voltage
1.8V / 3.3V
Error Checking
ECC Supported
Reliability Standard
GJB150A
Domestic Certification
ZZKK Applicable
Warranty Period
5 Years

Part Numbers

Orderable Part Numbers

Verified Loongtion part numbers for this product line. Copy a PN into your BOM or inquiry — confirm package, temperature grade, and firmware with engineering before production.

Part Number Grade Specification
YIDT008TUS-S Industrial Grade 8GB · -40℃~+85℃ · 12.5×9mm · SLC mode · LGA8
YIDT016TUS-S Industrial Grade 16GB · -40℃~+85℃ · 12.5×9mm · SLC mode · LGA8
YIDT032TUT-S Industrial Grade 32GB · -40℃~+85℃ · 12.5×9mm · TLC mode · LGA8
YIDT064TUT-S Industrial Grade 64GB · -40℃~+85℃ · 12.5×9mm · TLC mode · LGA8

Need a Micron, Samsung, or other incumbent cross-reference? See the part-number cross-reference catalog.

Application Cases

Industrial Embedded Miniaturized Scenarios

Typical Applications of Industrial SD NAND Chips

1

Miniature Embedded Industrial Motherboard Storage

Used in micro industrial control and embedded motherboards, direct SD interface adaptation, wide temperature range ensures stability.

Application Effects

  • Standard SD interface easy integration
  • Wide temperature ensures stable operation
  • Low power for fanless systems
2

Industrial Handheld/Portable Device Storage

Used in industrial handheld devices, data loggers, and portable equipment, more suitable for miniaturized and low-power needs.

Application Effects

  • Miniaturized package saves space
  • Low power extends battery life
  • Domestic meets compliance requirements
