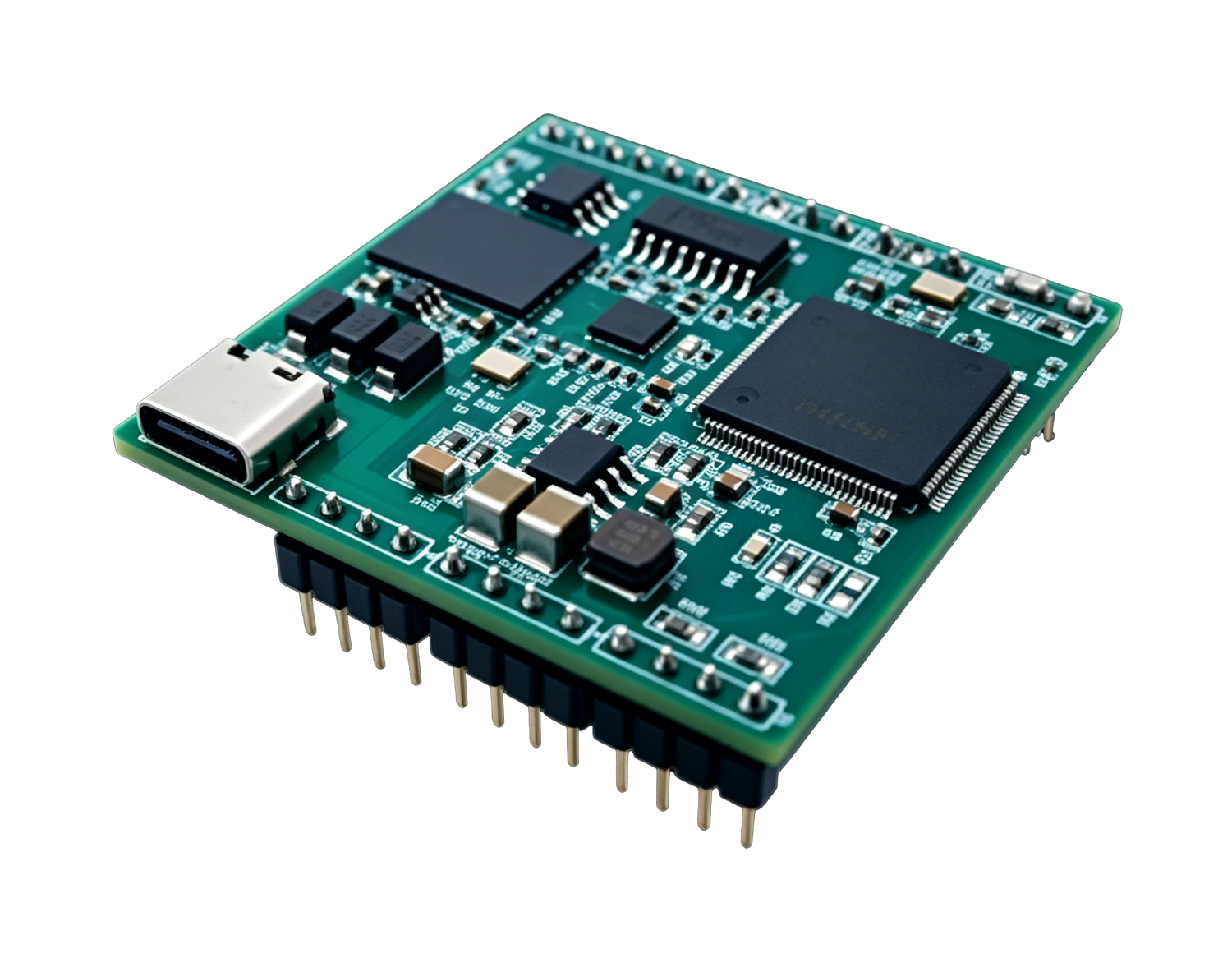

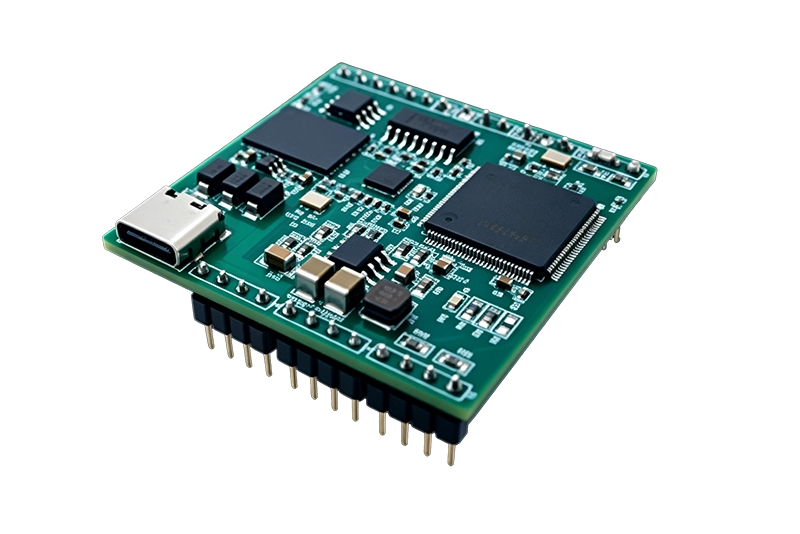

Data Recording Module
Multi-Channel Serial · Offline Recording
Key facts
What industrial buyers usually need to know first — before diving into the full datasheet.
5-year supply · 12-month EOL notice
Qualified SKUs stay available for long-lifecycle equipment — you get advance notice before any discontinuation.
MOQ from 1 pc
Prototype and repair lots without large inventory lock-in — then scale to production.
BOM review & firmware fit
We help match incumbent PNs, validate drop-in paths, and can adjust firmware / grade when the catalog needs a tweak.
5-year warranty · 4–8 weeks lead time
Stable production scheduling with a typical 4–8 weeks lead time once configuration and forecast are agreed.
| MOQ | From 1 pc |
|---|---|
| Standard lead time | 4–8 weeks (typical; confirm with sales for your configuration) |
| Warranty | 5 years (see /warranty for tier details) |
| Supply commitment | Minimum 5 years for qualified SKUs · 12-month EOL notice |
| Engineering support | BOM review, drop-in / fit checks, firmware and temperature-grade adaptation on request |
| Samples | Available on request |
Overview
Industrial-grade serial data recording module, supporting real-time collection and storage of multi-channel RS232/RS422/RS485 serial ports. Adopting wide-temperature rugged design, it can perform independent offline recording without a host computer, suitable for long-term stable data recording scenarios such as industrial sites, in-vehicle, airborne, and shipborne.
Specifications
| Capacity | 8GB / 16GB / 32GB / 64GB |
|---|---|
| Interface | RS232/RS422/RS485 Multi-Channel Serial Ports |
| Storage Method | Industrial Flash/TF Expansion |
| Operating temperature | -40℃~+85℃ |
| Storage temperature | -45℃~+95℃ |
| Baud Rate Range | 1200~921600bps |
| Supply voltage | DC 5V/12V |
| Working Mode | Offline Circular Recording, Trigger Recording |
| Data Protection | Power-Failure Protection, Wear Leveling |
| Warranty Period | 5 Years |
Orderable part numbers
Handbook PNs for this page. Confirm package, temperature bin, and speed grade before production.
| Part number | Grade | Summary |
|---|---|---|
YIDR032UUT-S |
Wide-temp | 32GB · -40℃~+85℃ |
YIDR064UUT-S |
Wide-temp | 64GB · -40℃~+85℃ |
YMDR008UUS-S |
GJB-STD | 8GB · -55℃~+95℃ |
YMDR016UUS-S |
GJB-STD | 16GB · -55℃~+95℃ |
Cross-references
No verified one-to-one vendor PN is published for this SKU yet. Browse the part-number catalog or contact engineering for BOM matching.
Compliance & Standards
Quality and release processes for Loongtion industrial memory and storage. Formal certificates and scope statements are available in the quotation pack on request.
Quality management system
-
ISO 9001:2015 certified (GB/T 19001-2016)
Quality management systems — Requirements. Certified quality system covering semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
-
Conforms to GJB 9001C—2017
Quality management systems — Requirements. Quality system practices conform to GJB 9001C for the same scope: semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
Product & interface standards
This catalog SKU follows the industry specifications that define its form factor and host interface.
-
Module / DOM host interfaces
Module pinout and host protocol follow the applicable SATA or other interface specification stated on the datasheet.
Grade wording: Product grade definition.
Key highlights
Independent offline storage, wide-temperature high reliability, suitable for harsh industrial on-site data recording
-
Supports synchronous
collection of multi-channel RS232/RS422/RS485 serial ports, wide baud rate coverage 1200~921600bps, compatible with various industrial serial devices
-
Independent offline working
mode no host computer required, recording starts when powered on, supports circular coverage and trigger stop recording
-
Industrial-grade storage
medium supports data power-failure protection and wear leveling, no data loss during long-term recording
-
Standard industrial
interface compatible with various sensors, collectors, and controllers, plug-and-play without drivers
Typical applications
Widely Used in Long-Term Data Recording Scenarios Such as Industrial Sites, In-Vehicle, Airborne, and Shipborne
Industrial On-Site Sensor Data Offline Recording
Used for long-term offline recording of industrial sensor, instrument, and PLC serial data, stable and reliable with low maintenance.
- Multi-channel serial simultaneous collection
- Wide temperature ensures stable operation without disconnection
- Offline without host computer
In-Vehicle/Airborne/Shipborne Serial Data Recording
Applied in in-vehicle black boxes, airborne collection, and shipborne equipment serial log storage, meeting special equipment requirements.
- Vibration-resistant and shock-resistant
- Wide temperature adaptable to extreme environments
- No data loss during power failure
