SATA DOM Module

Dual In-line · Dual Interfaces · Operating Temperature -40℃~+85℃

Developed for industrial embedded systems and high-demand fields, this SATA storage module adopts a 36-pin dual in-line structure, features full metal shielding, offers both high-speed storage and convenient data unloading capabilities, and is compatible with special industrial equipment.

Operating Temperature
-40℃~+85℃
Capacity Range
32GB-1TB
Download Manuals

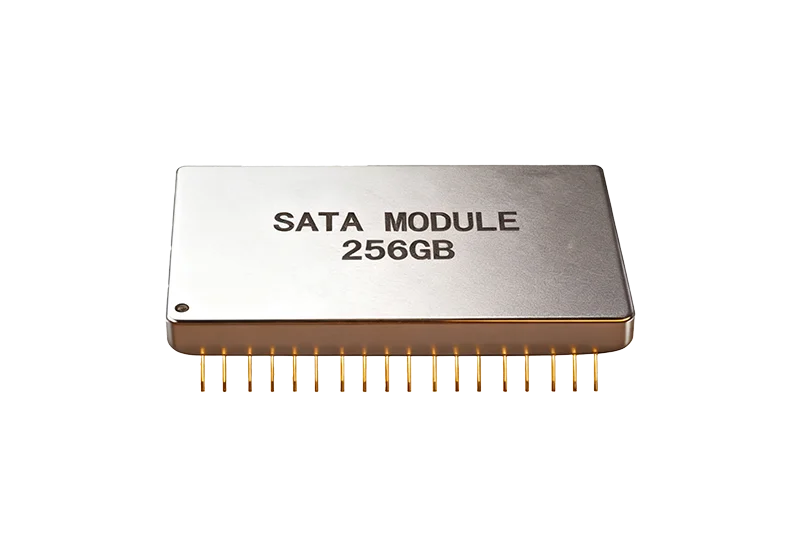

SATA DOM Module — product image
Product Features

Designed specifically for industrial embedded systems and high-demand fields

Dual In-line SATA Storage Module, featuring both high-speed storage and convenient data unloading capabilities

1

36-pin Dual In-line Package, Full Metal Shielding, Excellent Heat Dissipation and Anti-interference Performance, Compatible with High-density Deployment of Industrial Devices

2

SATA III Interface (Sequential Read 450MB/s, Write 250MB/s) for Storage, USB Interface (Sequential Read 150MB/s, Write 100MB/s) for Data Offloading

3

Wide-temperature Operation from -40℃ to +85℃, Storage from -45℃ to +90℃, Passed GJB150A Environmental Test Verification

4

Capacity: 32GB~1TB, Supports TLC (128GB~1TB), MLC (64GB~512GB), SLC (32GB~256GB) Flash Memory Types

5

Compatible with VxWorks, Linux, Windows NT/XP and Other Operating Systems, No Additional Drivers Required

Technical Advantages

Robust Industrial Storage Technology

Dual-interface design is suitable for multi-scenario applications.

1

36-pin Dual In-line, Easy to Install and Maintain

2

Dual-Interface Design, Supports Data Offloading

3

Full Metal Shielding, Excellent Heat Dissipation and Anti-Interference Performance

4

Passed GJB150A Environmental Test

Technical Specifications

Detailed Technical Specifications

Complete Specifications for Industrial SATA DOM Module

Product Specifications

Interface Type
SATA III + USB
Interface Form
36-pin Dual In-line
Capacity Options
32GB~1TB (SLC/MLC/TLC)
Operating Temperature
-40℃~+85℃
Storage Temperature
-45℃~+90℃
SATA Speed
Read 450MB/s, Write 250MB/s
USB Speed
Read 150MB/s, Write 100MB/s
Shielding Design
Full Metal Shielding
Reliability Standard
Verified by GJB150A Environmental Test
System Compatibility
VxWorks, Linux, WindowsNT/XP, etc.
Warranty Period
5 Years
Application Cases

Typical Application Scenarios

Industry Applications of SATA DOM Modules

1

Special Vehicle Chassis Data Acquisition Device

Applied to special vehicle chassis data acquisition devices, the dual-interface design meets storage and unloading requirements.

Application Effects

  • Dual interfaces compatible with multiple applications
  • Vibration resistance adapted to vehicle-mounted environments
  • Passed GJB150A environmental test
2

Video Storage for Shipborne Electro-Optical Pod Equipment

Used for shipborne electro-optical pod equipment, the high-speed SATA interface meets video storage requirements.

Application Effects

  • High-speed SATA interface suitable for video storage
  • Full metal shielding resistant to marine environments
  • USB interface facilitates data unloading
