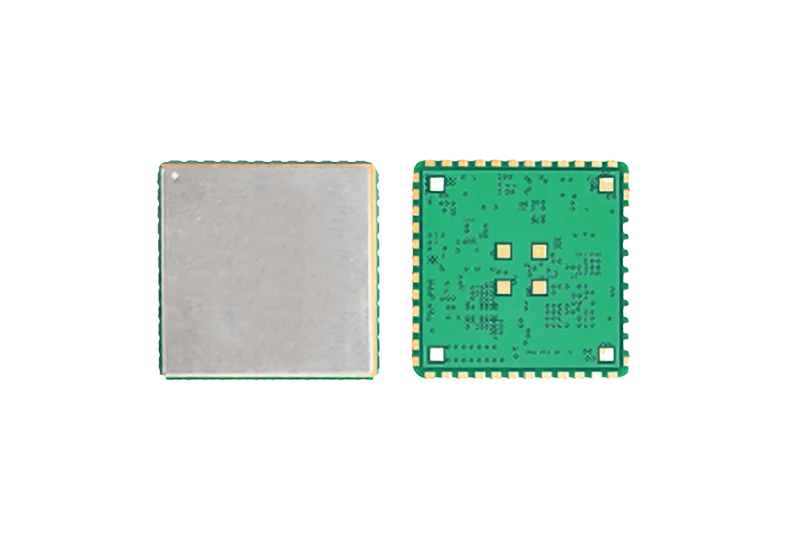

LGA Storage Module
Surface Mount Design · Made in China
Key facts
What industrial buyers usually need to know first — before diving into the full datasheet.
5-year supply · 12-month EOL notice
Qualified SKUs stay available for long-lifecycle equipment — you get advance notice before any discontinuation.
MOQ from 1 pc
Prototype and repair lots without large inventory lock-in — then scale to production.
BOM review & firmware fit
We help match incumbent PNs, validate drop-in paths, and can adjust firmware / grade when the catalog needs a tweak.
5-year warranty · 4–8 weeks lead time
Stable production scheduling with a typical 4–8 weeks lead time once configuration and forecast are agreed.
| MOQ | From 1 pc |
|---|---|
| Standard lead time | 4–8 weeks (typical; confirm with sales for your configuration) |
| Warranty | 5 years (see /warranty for tier details) |
| Supply commitment | Minimum 5 years for qualified SKUs · 12-month EOL notice |
| Engineering support | BOM review, drop-in / fit checks, firmware and temperature-grade adaptation on request |
| Samples | Available on request |
Overview
Industrial SATA storage module adopting surface-mount assembly, featuring medium-to-high quality design and equipped with a full metal shield, is compatible with high-vibration industrial environments such as rail transit, aerospace and other scenarios.
Specifications
| Interface | SATA III 6Gb/s |
|---|---|
| Interface Form | 48-pin Surface-mount Type |
| Dimension Specification | 35mm×35mm×3.5mm |
| Capacity Options | 128GB/256GB/512GB/1TB/2TB |
| Operating temperature | -40℃~+85℃ |
| Storage temperature | -45℃~+90℃ |
| Read Speed | Up to 350MB/s |
| Write Speed | Up to 300MB/s |
| Flash Type | TLC |
| Warranty Period | 5 Years |
| Shielding Design | Full Metal Shield |
| Compatible Platforms | Compatible with Loongson, Phytium platforms as well as Kylin OS and Linux systems |
Orderable part numbers
Handbook PNs for this page. Confirm package, temperature bin, and speed grade before production.
| Part number | Grade | Summary |
|---|---|---|
YIDK01TSOT-S |
Wide-temp | 1TB · -40℃~+85℃ |
YIDK02TSOT-S |
Wide-temp | 2TB · -40℃~+85℃ |
YIDK128SOT-S |
Wide-temp | 128GB · -40℃~+85℃ |
YIDK256SOT-S |
Wide-temp | 256GB · -40℃~+85℃ |
YIDK512SOT-S |
Wide-temp | 512GB · -40℃~+85℃ |
Cross-references
No verified one-to-one vendor PN is published for this SKU yet. Browse the part-number catalog or contact engineering for BOM matching.
Compliance & Standards
Quality and release processes for Loongtion industrial memory and storage. Formal certificates and scope statements are available in the quotation pack on request.
Quality management system
-
ISO 9001:2015 certified (GB/T 19001-2016)
Quality management systems — Requirements. Certified quality system covering semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
-
Conforms to GJB 9001C—2017
Quality management systems — Requirements. Quality system practices conform to GJB 9001C for the same scope: semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
Product & interface standards
This catalog SKU follows the industry specifications that define its form factor and host interface.
-
Module / DOM host interfaces
Module pinout and host protocol follow the applicable SATA or other interface specification stated on the datasheet.
Grade wording: Product grade definition.
Key highlights
Surface Mount Industrial SATA Storage Module, High-quality Solution
-
48pin Surface-mount Design
facilitating batch soldering on industrial motherboards; Full metal shield enhances anti-interference and anti-vibration capabilities
-
SATA III Protocol
with a maximum sequential read speed of up to 350MB/s and a maximum sequential write speed of up to 300MB/s
-
Wide operating temperature
range of -40℃~+85℃, storage temperature range of -45℃~+90℃, reinforced design verified by professional mechanical analysis
-
Capacities ranging
from 128GB to 2TB (TLC Flash), compatible with Loongson, Phytium platforms as well as Kylin OS and Linux systems
-
Metal shield helps pass
Electromagnetic Compatibility (EMC) tests, ensuring stable operation in complex industrial electromagnetic environments
Typical applications
Industry Applications of LGA Storage Modules
Storage for Rail Transit Operation Monitoring Equipment
Applied to rail transit operation monitoring equipment, the vibration-resistant design adapts to the complex rail transit environments.
- Vibration-resistant design adapts to rail transit environments
- All-metal shielding ensures stability
- High reliability protects monitoring data
Image and Video Acquisition Module for Aerial Survey UAVs
Used in aerial survey UAVs, the surface-mount design saves space, and high-speed reading and writing meets image acquisition requirements.
- Surface-mount design saves space
- High-speed reading and writing meets acquisition requirements
- EMC test passed for anti-interference performance
