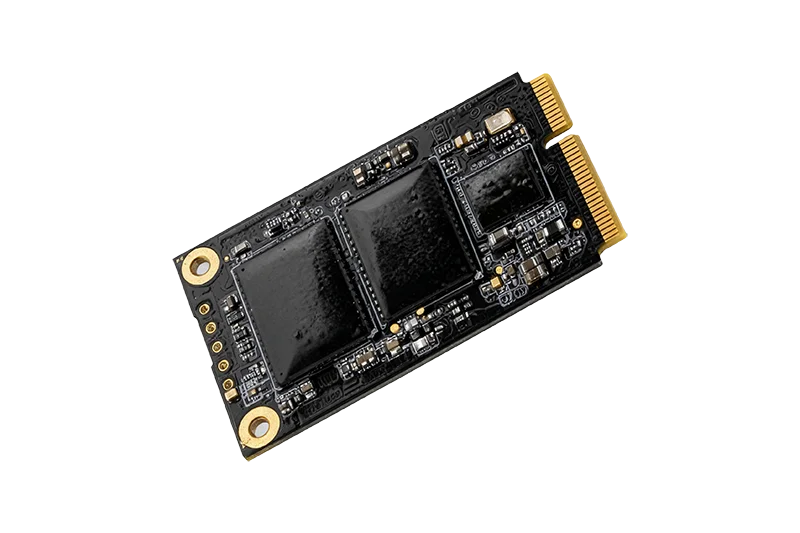

mSATA SSD (With Cache)
TLC · DRAM cache
Key facts
What industrial buyers usually need to know first — before diving into the full datasheet.
5-year supply · 12-month EOL notice
Qualified SKUs stay available for long-lifecycle equipment — you get advance notice before any discontinuation.
MOQ from 1 pc
Prototype and repair lots without large inventory lock-in — then scale to production.
BOM review & firmware fit
We help match incumbent PNs, validate drop-in paths, and can adjust firmware / grade when the catalog needs a tweak.
5-year warranty · 4–8 weeks lead time
Stable production scheduling with a typical 4–8 weeks lead time once configuration and forecast are agreed.
| MOQ | From 1 pc |
|---|---|
| Standard lead time | 4–8 weeks (typical; confirm with sales for your configuration) |
| Warranty | 5 years (see /warranty for tier details) |
| Supply commitment | Minimum 5 years for qualified SKUs · 12-month EOL notice |
| Engineering support | BOM review, drop-in / fit checks, firmware and temperature-grade adaptation on request |
| Samples | Available on request |
Overview
Non-domestic mSATA SSD with DRAM cache for higher sustained performance. Industrial wide-temp TLC bins (−40°C to +85°C) in the YIDE*OT* family — for hosts that need mSATA form factor with better write consistency than dramless designs. No CN badge on this line.
Specifications
| Interface | mSATA (SATA) |
|---|---|
| Package | mSATA |
| Supply option | Import flash / controller |
| Flash | TLC |
| Cache | With DRAM cache |
| Operating temperature | −40°C to +85°C |
| Capacity | 256GB / 512GB / 1TB / 2TB |
| PN family | YIDE*OT*-S |
| Grade | Industrial wide-temp |
Orderable part numbers
Handbook PNs for this page. Confirm package, temperature bin, and speed grade before production.
| Part number | Grade | Summary |
|---|---|---|
YIDE01TSOT-S |
Wide-temp | 1TB · TLC · DRAM cache · -40℃~+85℃ |
YIDE02TSOT-S |
Wide-temp | 2TB · TLC · DRAM cache · -40℃~+85℃ |
YIDE256SOT-S |
Wide-temp | 256GB · TLC · DRAM cache · -40℃~+85℃ |
YIDE512SOT-S |
Wide-temp | 512GB · TLC · DRAM cache · -40℃~+85℃ |
Cross-references
No verified one-to-one vendor PN is published for this SKU yet. Browse the part-number catalog or contact engineering for BOM matching.
Compliance & Standards
Quality and release processes for Loongtion industrial memory and storage. Formal certificates and scope statements are available in the quotation pack on request.
Quality management system
-
ISO 9001:2015 certified (GB/T 19001-2016)
Quality management systems — Requirements. Certified quality system covering semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
-
Conforms to GJB 9001C—2017
Quality management systems — Requirements. Quality system practices conform to GJB 9001C for the same scope: semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
Product & interface standards
This catalog SKU follows the industry specifications that define its form factor and host interface.
-
Industry SSD host interfaces
Host interface, command set, and form-factor behavior follow the applicable SATA, NVMe, or eMMC specification listed on the datasheet.
-
Serial ATA (SATA)
SATA interface timing and command set follow the SATA revision applicable to the listed SKU (commonly SATA III).
Grade wording: Product grade definition.
Key highlights
What matters for BOM review and board bring-up.
-
DRAM cache
Better sustained write behavior than dramless mSATA SKUs.
-
TLC capacity ladder
YIDE*OT* up to 2TB for data-heavy industrial hosts.
-
Industrial wide-temp
−40°C to +85°C operating range for standard industrial duty.
-
Import supply line
Non-CN catalog — pair with domestic mSATA pages when CN is required.
Typical applications
Where this SKU is commonly designed in.
Performance-oriented embedded
Industrial PCs that need higher sustained throughput on mSATA.
- DRAM cache
- TLC density
- Wide-temp continuous duty
Legacy connector, modern capacity
Keep mSATA wiring while stepping capacity to 1–2TB.
- YIDE*OT* handbook PNs
- Confirm host power
- No CN badge on this line
