PATA Micro DOC Module

Fully Sealed Metal Enclosure · IDE Bus · Operating Temperature: -40℃ ~ +85℃

Industrial storage module with IDE bus, which uses SLC/MLC NAND Flash as the storage medium. It adopts a fully sealed metal enclosure + PCB potting process for its exterior, features compact size and excellent heat dissipation performance, and is compatible with the storage requirements of embedded devices in special industries such as aviation, aerospace, and shipping.

Operating Temperature
-40℃~+85℃
Capacity Range
4GB-64GB
Download Manuals

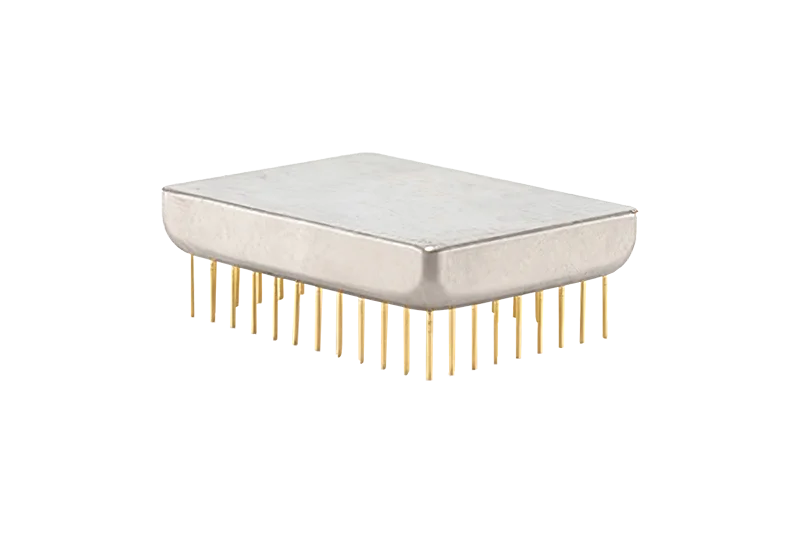

PATA Micro DOC Module — product image
Product Features

Designed specifically for special industries such as aviation, aerospace, and shipbuilding

Fully Sealed Metal Enclosure Design, Ensuring Stable Performance in Harsh Environments

1

38-pin Non-standard PATA Bus Interface (Gold Plating Thickness 3u), Complies with IDE Protocol, Supports PIO Transfer Modes 0-4 and Ultra DMA Modes 0-6

2

Industrial Wide Operating Temperature Range of -40℃~+85℃ (Storage Temperature: -45℃~+95℃), Wide Temperature Grade Operating Temperature Range of -55℃~+95℃; Passed GJB150A Environmental Test

3

Supports SLC (4GB~16GB) and MLC (4GB~32GB), PE Cycle Reaches 30,000 Times; Usable Capacity is 90%~95% of the Nominal Capacity

4

Equipped with Wear Leveling Algorithm, ECC Error Correction, and Bad Block Management Functions; Supports TRIM/NCQ/S.M.A.R.T, MTBF Reaches Million-hour Level

5

3.3V±5% Voltage Input, Equipped with Short-circuit Protection and Undervoltage Protection; Compatible with Linux, Windows XP, Windows 7 and Other Systems

Technical Advantages

Solid Industrial Technical Strength

Deeply Optimized Core Technologies Provide Reliable Guarantees for Industrial Applications

1

Fully Sealed Metal Enclosure + PCB Potting Technology, Compact Size and Excellent Heat Dissipation

2

PE Cycle up to 30,000 Times, High Durability Design

3

Passed GJB150A Environmental Test, Meets Requirements of Special Industries Such as Aerospace and Shipbuilding

4

5-Year Warranty Period, Supports 7×24 Hours Continuous Operation

Technical Specifications

Detailed Technical Parameters and Performance Indicators

Strict Industrial technical standards ensure product performance and quality

Product Specifications

Interface Type
38pin PATA (IDE)
Dimension Specification
42.8mm×36.4mm×≤5mm
Capacity Options
4GB~64GB (SLC/MLC)
Operating Temperature
-40℃~+85℃ (Wide Temperature Grade -55℃~+95℃)
Storage Temperature
-45℃~+95℃
Read Speed
≥25MB/s~50MB/s
Write Speed
≥20MB/s~40MB/s
Flash Type
SLC/MLC
PE Cycle
30,000 Cycles
Interface Design
Gold Plating Thickness 3u
Reliability Standard
GJB150A Environmental Test
TBW Tolerance
±10%
MTBF
Million-hour Grade
Warranty Period
5 Years
Application Cases

Practical Cases Successfully Applied in Special Industries

Real industrial application scenarios to verify the reliability and practicality of products.

1

Embedded Storage Module for Marine Equipment

Applied to marine equipment, featuring a hermetically sealed metal casing for marine environment resistance and compatibility with IDE interface devices.

Application Effects

  • Hermetically sealed design for marine environment resistance
  • Excellent heat dissipation with metal casing
  • Passed GJB150A environmental test
2

Small Control Terminal for Aerospace Field

Used in aerospace small control terminals, with a compact size compatible with space-constrained devices.

Application Effects

  • Compact size compatible with aerospace equipment
  • Up to 30,000 PE Cycles
  • Wide temperature grade supports extreme environments
