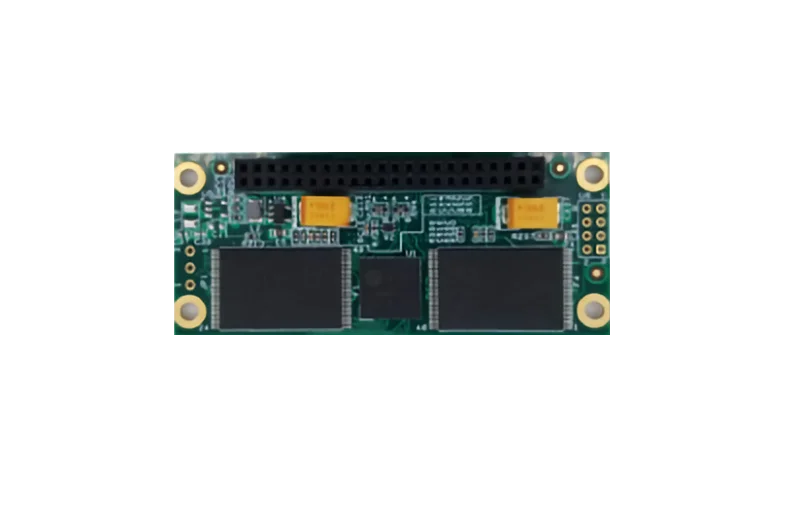

PATA DOM Module
SLC Chip · 44-pin Female Connector
Key facts
What industrial buyers usually need to know first — before diving into the full datasheet.
5-year supply · 12-month EOL notice
Qualified SKUs stay available for long-lifecycle equipment — you get advance notice before any discontinuation.
MOQ from 1 pc
Prototype and repair lots without large inventory lock-in — then scale to production.
BOM review & firmware fit
We help match incumbent PNs, validate drop-in paths, and can adjust firmware / grade when the catalog needs a tweak.
5-year warranty · 4–8 weeks lead time
Stable production scheduling with a typical 4–8 weeks lead time once configuration and forecast are agreed.
| MOQ | From 1 pc |
|---|---|
| Standard lead time | 4–8 weeks (typical; confirm with sales for your configuration) |
| Warranty | 5 years (see /warranty for tier details) |
| Supply commitment | Minimum 5 years for qualified SKUs · 12-month EOL notice |
| Engineering support | BOM review, drop-in / fit checks, firmware and temperature-grade adaptation on request |
| Samples | Available on request |
Overview
Adopting high-reliability SLC chips and traditional IDE interface, it is designed specifically for industrial equipment requiring PATA compatibility, and fully compatible with Kontron's KCDSK-DOM series products. The 44-pin female connector design enables direct insertion into the motherboard's IDE interface, making it an ideal replacement for traditional systems.
Specifications
| Interface | IDE (PATA) |
|---|---|
| Connector | Samtec Standard IDE 2.5-inch 44-pin Female Connector |
| Capacity Options | 8GB/16GB/32GB |
| Operating temperature | -40℃~85℃ |
| Storage temperature | -45℃~90℃ |
| Read Speed | Up to 80MB/s |
| Write Speed | Up to 40MB/s |
| Flash Type | SLC |
| Compatibility | Compatible with Kontron KCDSK-DOM Series Products, enabling convenient in-situ replacement |
| System Compatibility | Multiple systems including VxWorks, Linux, Windows XP, etc. |
| Reliability Standard | Environmental testing and reliability meet relevant specification requirements |
| Warranty Period | 5-Year Warranty Service |
Orderable part numbers
Handbook PNs for this page. Confirm package, temperature bin, and speed grade before production.
| Part number | Grade | Summary |
|---|---|---|
YIDQ008PCS-D |
Wide-temp | 8GB · -40℃~+85℃ |
YIDQ016PCS-D |
Wide-temp | 16GB · -40℃~+85℃ |
YIDQ032PCS-D |
Wide-temp | 32GB · -40℃~+85℃ |
Cross-references
Vendor families for BOM exploration. Always validate ball map, speed bin, and temperature grade on your host.
Compliance & Standards
Quality and release processes for Loongtion industrial memory and storage. Formal certificates and scope statements are available in the quotation pack on request.
Quality management system
-
ISO 9001:2015 certified (GB/T 19001-2016)
Quality management systems — Requirements. Certified quality system covering semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
-
Conforms to GJB 9001C—2017
Quality management systems — Requirements. Quality system practices conform to GJB 9001C for the same scope: semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
Product & interface standards
This catalog SKU follows the industry specifications that define its form factor and host interface.
-
Module / DOM host interfaces
Module pinout and host protocol follow the applicable SATA or other interface specification stated on the datasheet.
Grade wording: Product grade definition.
Key highlights
Traditional IDE Interface, fully compatible with Kontron products
-
Fully Compatible
with KCDSK-DOM Series
-
Traditional PATA Interface
Compatible with Legacy Systems
-
Plug-in Design
Easy to Install
-
High Durability SLC Flash
Chips Longer Service Life
- High-Quality Replacement
Typical applications
PATA/IDE DOM for hosts that still rely on parallel ATA while needing industrial-temperature storage.
Legacy industrial PC upgrade
Replace aging PATA HDDs with a solid-state DOM without redesigning the host board.
Kontron-compatible PATA slots
Pin-compatible path for platforms that previously used Kontron KCDSK-class DOM modules.
Medical / measurement instruments
Long-lifecycle instruments with PATA interfaces that need wide-temperature reliability.
