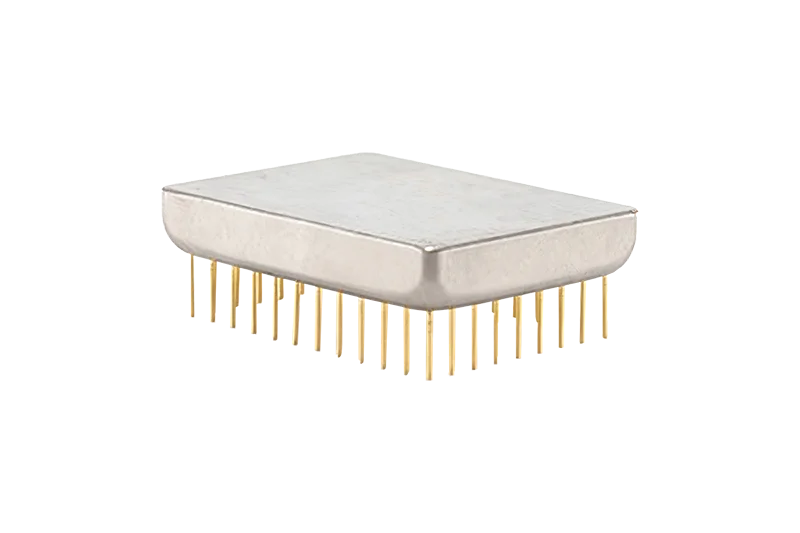

PATA Micro DOC Module · Extreme
38-Pin Through-Hole · All-Metal Sealed
Key facts
What industrial buyers usually need to know first — before diving into the full datasheet.
5-year supply · 12-month EOL notice
Qualified SKUs stay available for long-lifecycle equipment — you get advance notice before any discontinuation.
MOQ from 1 pc
Prototype and repair lots without large inventory lock-in — then scale to production.
BOM review & firmware fit
We help match incumbent PNs, validate drop-in paths, and can adjust firmware / grade when the catalog needs a tweak.
5-year warranty · 4–8 weeks lead time
Stable production scheduling with a typical 4–8 weeks lead time once configuration and forecast are agreed.
| MOQ | From 1 pc |
|---|---|
| Standard lead time | 4–8 weeks (typical; confirm with sales for your configuration) |
| Warranty | 5 years (see /warranty for tier details) |
| Supply commitment | Minimum 5 years for qualified SKUs · 12-month EOL notice |
| Engineering support | BOM review, drop-in / fit checks, firmware and temperature-grade adaptation on request |
| Samples | Available on request |
Overview
The Micro Disk On Chip storage module is designed specifically for extreme environments such as aerospace. It adopts a 38-pin through-hole fully metal hermetic package, supports stable operation over an ultra-wide temperature range of -55℃ to 90℃, features an IDE interface compatible with legacy systems, and boasts a low-power design with only 1.2W power consumption.
Specifications
| Interface | 38pin PATA (IDE) |
|---|---|
| Physical Dimensions | 32mm×25mm×5mm |
| Capacity Options | 8GB/16GB/32GB (SLC/MLC) |
| Operating temperature | -55℃~90℃ |
| Storage temperature | -55℃~95℃ |
| Flash Type | SLC/MLC |
| Operating Mode | Supports Ultra DMA Operating Modes 0-6 and PIO Transfer Modes 0-4 |
| Operating Power Consumption | 1.2W |
| Sleep Power Consumption | 0.5W |
| System Compatibility | Multiple systems including Windows, Linux, VXworks, etc. |
| Reliability Standard | Environmental testing and reliability meet relevant specification requirements |
| Warranty Period | 5-year warranty service |
Compliance & Standards
Quality and release processes for Loongtion industrial memory and storage. Formal certificates and scope statements are available in the quotation pack on request.
Quality management system
-
ISO 9001:2015 certified (GB/T 19001-2016)
Quality management systems — Requirements. Certified quality system covering semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
-
Conforms to GJB 9001C—2017
Quality management systems — Requirements. Quality system practices conform to GJB 9001C for the same scope: semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
Environmental methods (GJB-STD)
For Extreme-temp / GJB-STD SKUs, environmental planning and screening reference the following methods. This is not a claim of third-party product certification under these standards.
-
GJB 150A (aligned with MIL-STD-810 methods)
Military equipment laboratory environmental test methods. GJB-STD SKUs are designed and screened with reference to GJB 150A; it is the Chinese military counterpart commonly mapped to MIL-STD-810 style environmental methods.
Product & interface standards
This catalog SKU follows the industry specifications that define its form factor and host interface.
-
Module / DOM host interfaces
Module pinout and host protocol follow the applicable SATA or other interface specification stated on the datasheet.
Grade wording: Product grade definition.
Key highlights
Highly Reliable Design, Adapted to the Most Extreme Operating Environments
-
All-metal Hermetic Package
Through-hole Mounting
-
Compatible with Traditional
PATA Systems
-
Only 1.2W, Ideal
for Low-power Applications
-
High-reliability Hermetic
Design
- High Quality
Typical applications
38-pin PATA Micro DOC with rugged connector for sealed or vibration-prone installations.
Ruggedized custom storage
Aviation-style connector and sealed housing for harsh industrial or vehicle environments.
Import-module replacement
Form-fit replacement path for imported Micro DOC modules in existing fixtures.
High-vibration hosts
Equipment where soldered or bay SSDs are impractical and a keyed DOC connector is preferred.
