DRAM Wide-temp CN

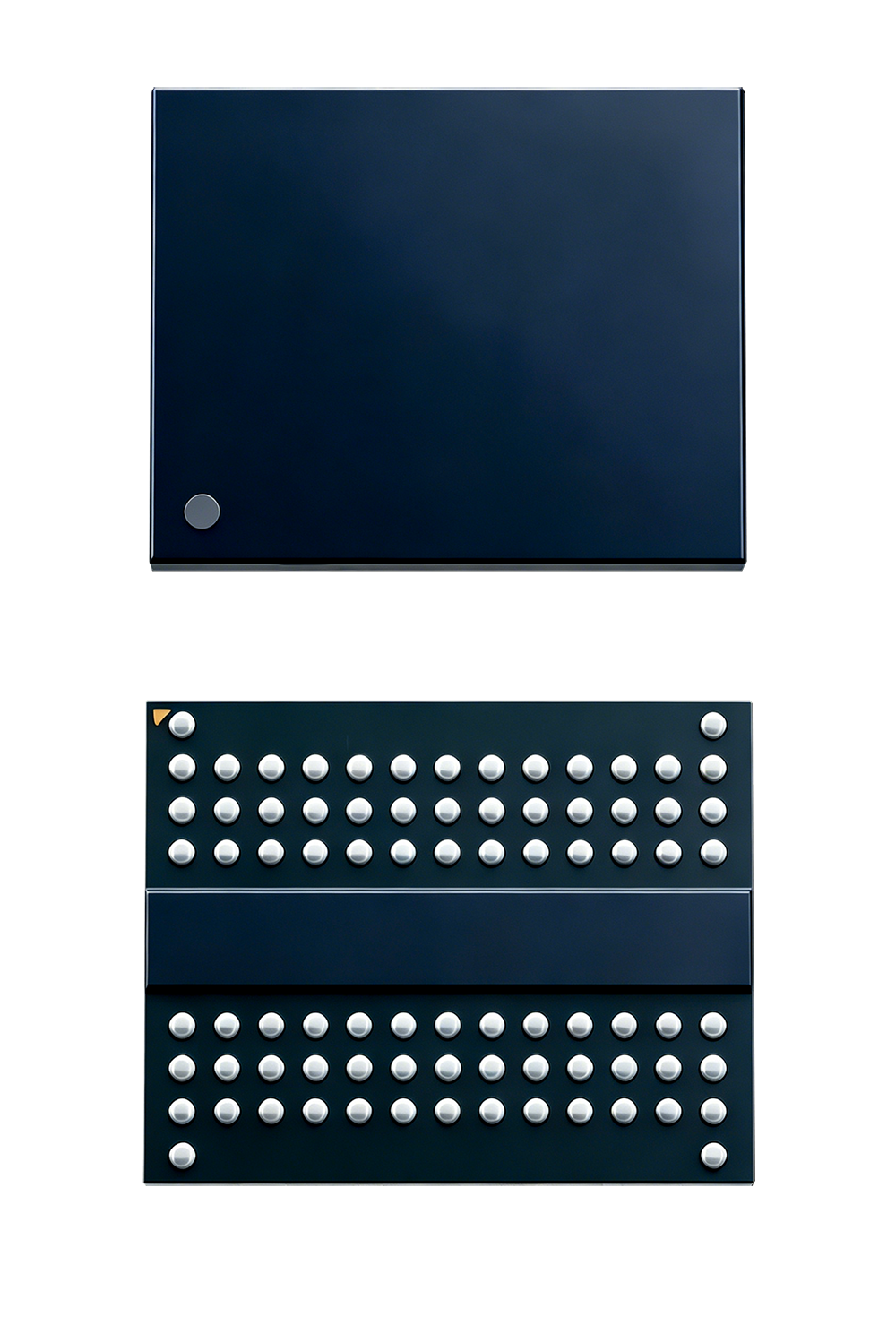

Industrial 16Gb DDR5 DRAM Chip

16Gb WBGA-82 · CN supply

Operating temperature −40°C to +85°C
Density 16Gb (×8)
Data rate 4800–6400 MT/s
Package WBGA-82
Industrial 16Gb DDR5 DRAM Chip

Key facts

What industrial buyers usually need to know first — before diving into the full datasheet.

5-year supply · 12-month EOL notice

Qualified SKUs stay available for long-lifecycle equipment — you get advance notice before any discontinuation.

MOQ from 1 pc

Prototype and repair lots without large inventory lock-in — then scale to production.

BOM review & firmware fit

We help match incumbent PNs, validate drop-in paths, and can adjust firmware / grade when the catalog needs a tweak.

5-year warranty · 4–8 weeks lead time

Stable production scheduling with a typical 4–8 weeks lead time once configuration and forecast are agreed.

MOQ From 1 pc
Standard lead time 4–8 weeks (typical; confirm with sales for your configuration)
Warranty 5 years (see /warranty for tier details)
Supply commitment Minimum 5 years for qualified SKUs · 12-month EOL notice
Engineering support BOM review, drop-in / fit checks, firmware and temperature-grade adaptation on request
Samples Available on request

Overview

Industrial 16Gb DDR5 DRAM chip on ChangXin die in WBGA-82 (×8). Rated −40°C to +85°C with 1.1 V operation and on-die ECC — for industrial compute, embedded controllers, and China-localized BOMs that need DDR5 bandwidth with a domestic supply path.

Specifications

Interface DDR5
Package WBGA-82
Density 16Gb monolithic (2Gb×8)
Operating temperature −40°C to +85°C
Storage temperature −45°C to +90°C
Data rate 4800 / 5600 / 6400 MT/s
Supply voltage 1.1 V
Bit width ×8
Error checking On-die ECC
Supply option China-localized (CN)
Warranty 5 years

Orderable part numbers

Handbook PNs for this page. Confirm package, temperature bin, and speed grade before production.

Part numberGradeSummary
YZ5GG16W-9CXDQ-M(O) Wide-temp 16Gb · -40℃~+85℃

Compliance & Standards

Quality and release processes for Loongtion industrial memory and storage. Formal certificates and scope statements are available in the quotation pack on request.

Quality management system

  • ISO 9001:2015 certified (GB/T 19001-2016)
    Quality management systems — Requirements. Certified quality system covering semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
  • Conforms to GJB 9001C—2017
    Quality management systems — Requirements. Quality system practices conform to GJB 9001C for the same scope: semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).

Product & interface standards

This catalog SKU follows the industry specifications that define its form factor and host interface.

  • JEDEC DRAM specifications
    DDR3 / DDR4 / DDR5 / LPDDR families follow applicable JEDEC device and signaling specifications for the listed density, organization, and speed bin.
  • JEDEC DDR SDRAM
    DDR3 / DDR4 / DDR5 devices follow applicable JEDEC DDR specifications for the listed density, organization, and speed bin.

Grade wording: Product grade definition.

Key highlights

What matters for BOM review and board bring-up.

  • DDR5 bandwidth
    4800–6400 MT/s for industrial compute and next-gen embedded hosts migrating from DDR4.
  • 1.1 V operation
    Lower voltage than typical DDR4 rails — less heat in sealed or fanless enclosures.
  • Wide-temp industrial grade
    −40°C to +85°C operating range for factory, outdoor cabinet, and edge deployments.
  • WBGA-82 · ×8
    Monolithic 16Gb organization in WBGA-82 — confirm ball map against your DDR5 controller.
  • China-localized supply (CN)
    ChangXin-based die with domestic supply options for CN-labeled programs.

Typical applications

Where this SKU is commonly designed in.

Industrial servers & edge compute

Higher concurrency and memory bandwidth for industrial servers and edge nodes.

  • DDR5 data rate headroom
  • Wide-temp continuous duty
  • CN supply path when required

Embedded control terminals

Compact WBGA footprint for high-performance industrial controllers.

  • 1.1 V power budget
  • On-die ECC
  • Controller ball-map review required

Series

Frequently asked questions

What is the operating temperature range of the Loongtion DDR5 chip?

The Loongtion DDR5 DRAM chip is available in industrial wide-temperature grades. Confirm the exact ordering PN and temperature bin with the datasheet for your environment.

Does it maintain full data rate in wide temperature?

Loongtion DDR5 is validated for industrial controllers, with signal-integrity and impedance-matching guidance published in the DDR5 signal integrity resource. Confirm speed grade and temperature bin against the datasheet for your board.

What is the lead time?

Typically 4-8 weeks for cross-reference and standard industrial orders; contact engineering for current status.

What certifications does it carry?

RoHS/REACH compliant and JEDEC DDR5 compliant. Full compliance statement available on request.

Engineering guides

Related products

8Gb DDR4 DRAM Chip · Wide-temp · CN
DRAM Wide-temp CN

8Gb DDR4 DRAM Chip · Wide-temp · CN

  • DDR4 bandwidth
  • China-localized supply (CN)
  • Drop-in planning
Temp −40℃~+85℃ Density 8Gb
View specs →
DDR3 DRAM Chip · Extreme · CN
DRAM Extreme CN GJB-STD

DDR3 DRAM Chip · Extreme · CN

  • FBGA96 · ×16
  • Dual-voltage rail
  • China-localized supply (CN)
Temp −55°C to +125°C Density 2Gb–4Gb
View specs →

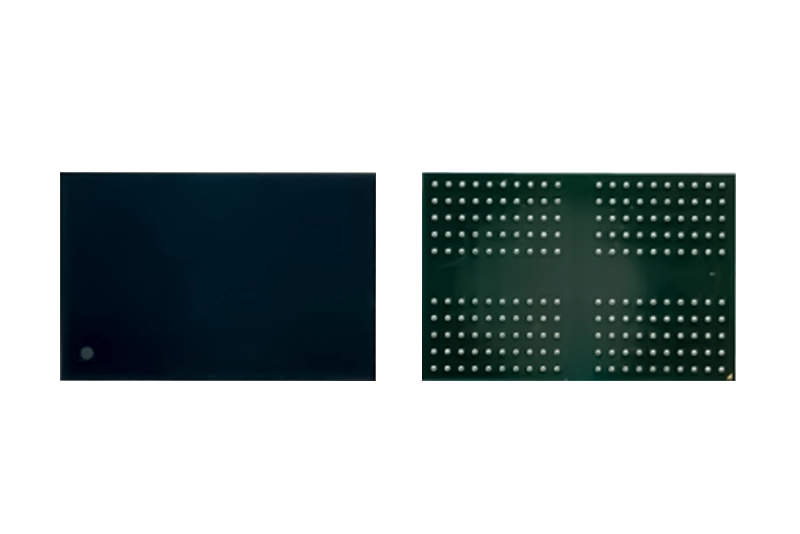

LPDDR4X DRAM Chip
