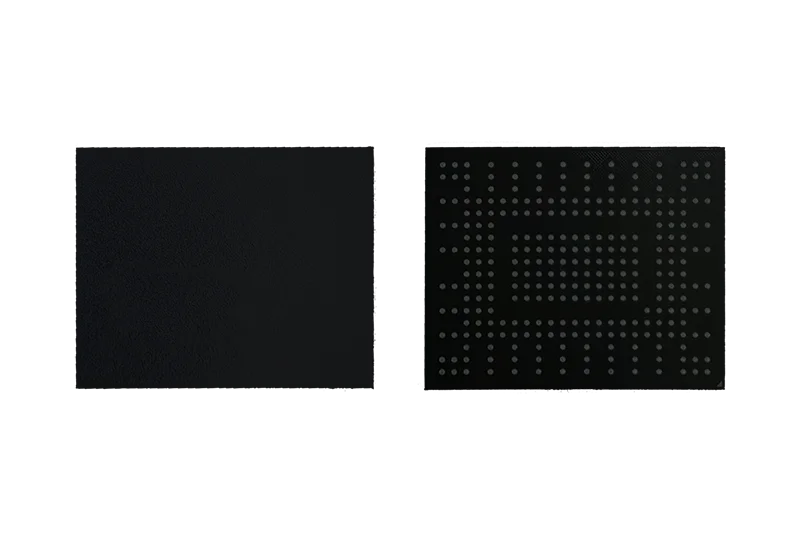

NVMe BGA SSD · Extreme
PCIe Gen3×4 · FBGA291 Package
Key facts
What industrial buyers usually need to know first — before diving into the full datasheet.
5-year supply · 12-month EOL notice
Qualified SKUs stay available for long-lifecycle equipment — you get advance notice before any discontinuation.
MOQ from 1 pc
Prototype and repair lots without large inventory lock-in — then scale to production.
BOM review & firmware fit
We help match incumbent PNs, validate drop-in paths, and can adjust firmware / grade when the catalog needs a tweak.
5-year warranty · 4–8 weeks lead time
Stable production scheduling with a typical 4–8 weeks lead time once configuration and forecast are agreed.
| MOQ | From 1 pc |
|---|---|
| Standard lead time | 4–8 weeks (typical; confirm with sales for your configuration) |
| Warranty | 5 years (see /warranty for tier details) |
| Supply commitment | Minimum 5 years for qualified SKUs · 12-month EOL notice |
| Engineering support | BOM review, drop-in / fit checks, firmware and temperature-grade adaptation on request |
| Samples | Available on request |
Overview
Military-spec Fully Domestic NVMe BGA SSD adopts PCIe Gen3×4 interface, with a sequential read speed of up to 1800MB/s. It features compact size and light weight, supports ultra-wide temperature operation ranging from -55℃ to 105℃, and is compatible with rugged device scenarios with limited space.
Specifications
| Interface | PCIe Gen3×4 (NVMe) |
|---|---|
| Package | FBGA291 |
| Physical Dimensions | 16.0mm×20.0mm×1.58mm |
| Capacity Options | 32GB/64GB/128GB |
| Operating temperature | −40°C to +105°C |
| Storage temperature | -45℃~90℃ |
| Flash Type | pSLC |
| Read Speed | Up to 1800MB/s |
| Write Speed | Up to 1000MB/s |
| Supply voltage | VCC（3.3V、1.2V、1.8V） |
| System Compatibility | Multiple systems including VxWorks, Linux, Windows NT/XP, etc. |
| Reliability Standard | Environmental testing and reliability meet relevant specification requirements |
| Warranty Period | 5-year warranty service |
Orderable part numbers
Handbook PNs for this page. Confirm package, temperature bin, and speed grade before production.
| Part number | Grade | Summary |
|---|---|---|
YIDF032NMS-S |
Wide-temp | 32GB · China-localized · pSLC · -40℃~+85℃ |
YIDF064GLS-S |
GJB-STD | 64GB · pSLC · -40℃~+105℃ |
YIDF064NMS-S |
Wide-temp | 64GB · China-localized · pSLC · -40℃~+85℃ |
YIDF128GLS-S |
GJB-STD | 128GB · pSLC · -40℃~+105℃ |
YIDF128NMS-S |
Wide-temp | 128GB · China-localized · pSLC · -40℃~+85℃ |
YIDF256GLS-S |
GJB-STD | 256GB · pSLC · -40℃~+105℃ |
YIDF256NMT-S |
Wide-temp | 256GB · China-localized · TLC · -40℃~+85℃ |
YIDF512NMT-S |
Wide-temp | 512GB · China-localized · TLC · -40℃~+85℃ |
Cross-references
Vendor families for BOM exploration. Always validate ball map, speed bin, and temperature grade on your host.
Compliance & Standards
Quality and release processes for Loongtion industrial memory and storage. Formal certificates and scope statements are available in the quotation pack on request.
Quality management system
-
ISO 9001:2015 certified (GB/T 19001-2016)
Quality management systems — Requirements. Certified quality system covering semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
-
Conforms to GJB 9001C—2017
Quality management systems — Requirements. Quality system practices conform to GJB 9001C for the same scope: semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
Environmental methods (GJB-STD)
For Extreme-temp / GJB-STD SKUs, environmental planning and screening reference the following methods. This is not a claim of third-party product certification under these standards.
-
GJB 150A (aligned with MIL-STD-810 methods)
Military equipment laboratory environmental test methods. GJB-STD SKUs are designed and screened with reference to GJB 150A; it is the Chinese military counterpart commonly mapped to MIL-STD-810 style environmental methods.
Product & interface standards
This catalog SKU follows the industry specifications that define its form factor and host interface.
-
Industry SSD host interfaces
Host interface, command set, and form-factor behavior follow the applicable SATA, NVMe, or eMMC specification listed on the datasheet.
-
NVM Express (NVMe)
Command set and PCIe-attached storage behavior conform to the NVMe specification revision applicable to the listed SKU.
-
PCI Express
Physical and link-layer attachment follows the PCIe generation and lane width stated on the datasheet (for example PCIe 3.0 ×4).
Grade wording: Product grade definition.
Key highlights
Military-spec High-speed Miniaturized Storage Solution
-
Adopts PCIe Gen3×4 interface
with sequential read speed up to 1800MB/s and sequential write speed up to 1000MB/s
-
Compared with traditional
M.2 SSDs it is smaller in size and lighter in weight, suitable for space-constrained scenarios
-
Operating temperature
−40℃~+105℃, storage temperature: -45℃~90℃, environmental tests and reliability meet relevant specification requirements
-
Supports multiple systems
such as VxWorks Linux, Windows NT/XP
-
VCC (3.3V, 1.2V
VCC (3.3V, 1.2V, 1.8V), stable power management
Typical applications
Aerospace, vehicle terminals and military embedded platforms requiring solder-down NVMe BGA with extended temperature screening.
Rugged Tablet PC
Applied to Rugged Tablet PCs, the miniaturized package is compatible with the internal space of devices, and ultra-wide temperature operation meets the requirements of extreme environments.
- Miniaturized Package Compatible with Tablet PCs
- High-Speed Interfaces Improve System Response
- Passed High-Standard Reliability Tests
Small Industrial Control Host
Used in Small Industrial Control Hosts, PCIe high-speed interfaces ensure fast data access with strong environmental adaptability.
- Excellent Performance of PCIe High-Speed Interfaces
- Resistant to Extreme Temperature Environments
- Supports Multiple Industrial Systems
Series
-
Industrial NVMe BGA SSD
Solder-down NVMe BGA SSD for embedded systems.
Engineering guides
-
eMMC vs NVMe BGA SSD: A Practical Guide for Industrial Embedded Storage Decisions
Say you are putting together an embedded system — an industrial controller, an IoT gateway, maybe a ruggedized computer. Processor picked, p...
-
Beyond the Datasheet: Practical Thermal Management for Industrial M.2 NVMe SSDs
You've selected an industrial M.2 NVMe SSD rated for extended temperature, yet during system validation the drive throttles after 20 minutes...
-
M.2 NVMe SSDs for Industrial Computing: A Selection Guide
Industrial computing demands storage that can handle sustained high throughput, low latency, and reliable operation in harsh environments. M...
-
Industrial Temperature NVMe SSDs: Architecture, Selection, and Thermal Considerations
Industrial embedded systems often face extreme thermal environments – from unheated enclosures in winter to hot factory floors. For NVMe SSD...
-
Industrial NVMe BGA SSD Guide
NVMe BGA SSD for space-constrained boards — dual-mode TLC/pSLC notes and mounting guidance.
-
Industrial M.2 NVMe Cacheless SSD Guide
When to choose cacheless M.2 NVMe — power, cost, and workload fit for industrial systems.
Product grade definition
What "GJB-standard" means on this website
How we use this label on our site: reliability tier, documentation, and use-case boundaries.
On this website, "GJB-standard" refers to a higher-reliability product tier within our portfolio. It emphasizes environmental robustness, reliability validation, and manufacturing/quality controls that exceed typical consumer-grade products and, where stated for a given SKU, exceed the baseline of our standard Industrial offerings. This label is used to reduce confusion between product grades and does not constitute a representation that any product is suitable for any particular application, including military end-use.
Any differences versus Industrial are defined per SKU in the applicable datasheet / technical documentation (for example: wider operating temperature, stricter mechanical/climatic stress validation, tighter consistency and traceability controls, where applicable).
GJB (if referenced for a product): applicable clauses, test items, and whether requirements apply to product specifications versus management system certification scope are governed solely by that product's technical documentation and, where applicable, the scope of certification. For additional documentation, please contact us (additional materials may be provided under NDA or after customer qualification, as applicable).
