Rugged NVMe SSD
20,000g Acceleration · High-Speed Connectors
Key facts
What industrial buyers usually need to know first — before diving into the full datasheet.
5-year supply · 12-month EOL notice
Qualified SKUs stay available for long-lifecycle equipment — you get advance notice before any discontinuation.
MOQ from 1 pc
Prototype and repair lots without large inventory lock-in — then scale to production.
BOM review & firmware fit
We help match incumbent PNs, validate drop-in paths, and can adjust firmware / grade when the catalog needs a tweak.
5-year warranty · 4–8 weeks lead time
Stable production scheduling with a typical 4–8 weeks lead time once configuration and forecast are agreed.
| MOQ | From 1 pc |
|---|---|
| Standard lead time | 4–8 weeks (typical; confirm with sales for your configuration) |
| Warranty | 5 years (see /warranty for tier details) |
| Supply commitment | Minimum 5 years for qualified SKUs · 12-month EOL notice |
| Engineering support | BOM review, drop-in / fit checks, firmware and temperature-grade adaptation on request |
| Samples | Available on request |
Overview

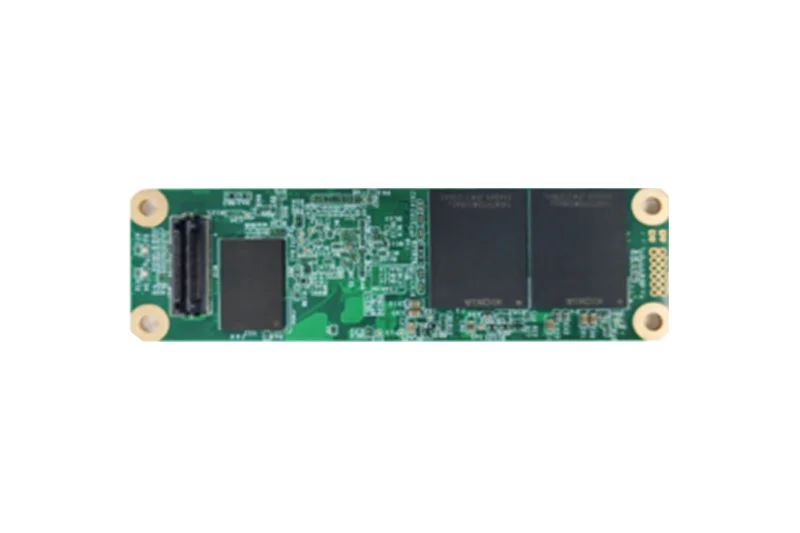

Ruggedized NVMe storage drive, customized for specialized industrial scenarios such as missile-borne and ship-borne applications, is equipped with high-speed connectors and Industrial flash chips, features vibration and shock resistance, and meets the high-speed data recording requirements in extreme industrial environments.
Specifications
| Interface | PCIe Gen3×4 (NVMe) |
|---|---|
| Connector | Samtec High-Speed Connector |
| Capacity Options | 512GB/1TB/2TB |
| Operating temperature | -40℃~+85℃ |
| Storage temperature | -45℃~+90℃ |
| Read Speed | Up to 1500MB/s |
| Write Speed | Up to 1200MB/s |
| Flash Type | TLC (Kioxia Industrial) |
| Shock Resistance | 20,000g Acceleration |
| Reliability Standard | Passed Harsh Environmental Tests |
| Compatible Platforms | Industrial FPGA Platforms such as Xilinx XC7020-2CLG484I |
| Warranty Period | 5 Years |
Orderable part numbers
Handbook PNs for this page. Confirm package, temperature bin, and speed grade before production.
| Part number | Grade | Summary |
|---|---|---|
YIDJ01THQS-D |
Wide-temp | 1TB · -40℃~+85℃ |
YIDJ01TNZT-S |
Wide-temp | 1TB · TLC · -40℃~+85℃ |
YIDJ02TNZT-S |
Wide-temp | 2TB · TLC · -40℃~+85℃ |
YIDJ512HQS-D |
Wide-temp | 512GB · -40℃~+85℃ |
YIDJ512NZT-S |
Wide-temp | 512GB · TLC · -40℃~+85℃ |
Cross-references
No verified one-to-one vendor PN is published for this SKU yet. Browse the part-number catalog or contact engineering for BOM matching.
Compliance & Standards
Quality and release processes for Loongtion industrial memory and storage. Formal certificates and scope statements are available in the quotation pack on request.
Quality management system
-
ISO 9001:2015 certified (GB/T 19001-2016)
Quality management systems — Requirements. Certified quality system covering semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
-
Conforms to GJB 9001C—2017
Quality management systems — Requirements. Quality system practices conform to GJB 9001C for the same scope: semiconductor integrated circuits and solid-state storage modules (design, development, production, and technical support) and hybrid integrated circuits (design, development, and technical support).
Product & interface standards
This catalog SKU follows the industry specifications that define its form factor and host interface.
-
Industry SSD host interfaces
Host interface, command set, and form-factor behavior follow the applicable SATA, NVMe, or eMMC specification listed on the datasheet.
-
NVM Express (NVMe)
Command set and PCIe-attached storage behavior conform to the NVMe specification revision applicable to the listed SKU.
-
PCI Express
Physical and link-layer attachment follows the PCIe generation and lane width stated on the datasheet (for example PCIe 3.0 ×4).
Grade wording: Product grade definition.
Key highlights
Tailored specifically for special industrial scenarios including missile-borne and ship-borne applications
-
Adopts Samtec high-speed
connectors housing and internal structures are ruggedized to withstand strong vibration and shock (e.g., missile-borne 20,000g acceleration environment)
-
PCIe Gen3×4 lanes
supports NVMe protocol, maximum sequential read speed up to 1500MB/s, maximum sequential write speed up to 1200MB/s
-
Wide operating temperature
range of -40℃~+85℃, storage temperature range of -45℃~+90℃, adaptable to special industrial environments
-
Capacity
512GB~2TB (TLC flash memory), compatible with Industrial FPGA platforms such as Xilinx XC7020-2CLG484I
-
Adopts Kioxia Industrial TLC
chips passes rigorous environmental tests to ensure no data loss under extreme conditions
Typical applications
Designed for outdoor cabinets, mobile surveillance, railway and energy field equipment where operating temperature and vibration exceed consumer SSD limits.
Missile-borne Data Recording Device
Applied to missile-borne data recording devices, it withstands 20,000g acceleration impact and ensures no data loss in extreme environments.
- Withstands 20,000g acceleration impact
- High-speed recording meets missile-borne requirements
- Kioxia Industrial chips ensure reliability
High-speed Storage for Special Industrial Testing Equipment
Used in special industrial testing equipment, the high-speed PCIe interface meets real-time data recording requirements.
- High-speed PCIe meets real-time recording requirements
- Reinforced design adapts to harsh environments
- Compatible with industrial FPGA platforms
