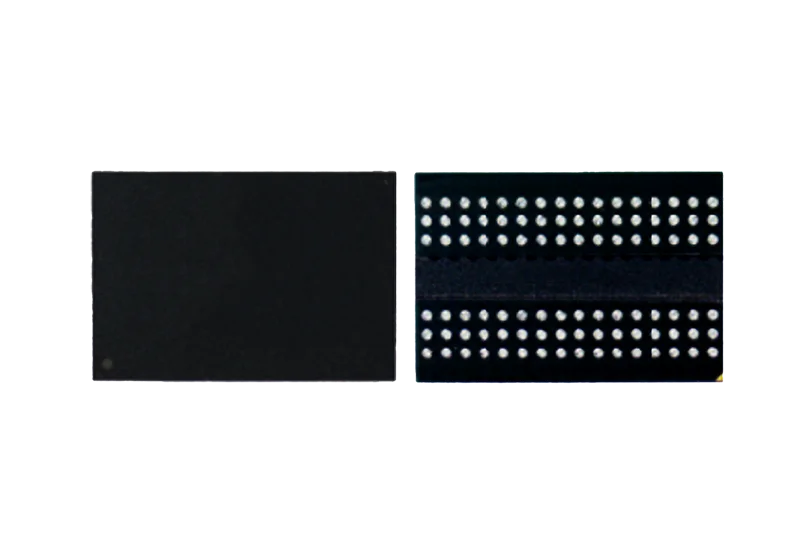

DDR3 Memory Chips

Ultra-wide Temperature Range -55℃~105℃ · FBGA96 Package

High-quality DDR3 memory chips are based on high-quality original JinYuan dies. Their packaging, testing and wide-temperature screening comply with high-standard specifications. Featuring an operating frequency of 800MHz or 933MHz, they support wide-temperature operation ranging from -55℃ to 105℃, and are interchangeable with corresponding devices from Micron, Samsung and other manufacturers.

Operating Temperature
-55℃~105℃
Capacity Range
2Gb-4Gb
Download Manuals
DDR3 Memory Chips
Product Features

Product Features

Military-spec Grade High-quality Memory Solution

1

High Quality, based on high-quality original wafers, packaging testing and wide-temperature screening meet the requirements of Industrial and specialized scenarios

2

Standard SSTL interface, operating frequency 800MHz or 933MHz, bit width x16

3

Operating temperature -55℃~105℃, storage temperature -45℃~90℃, high stability

4

Replaceable with corresponding devices from Micron, Samsung, etc., compliant with GJB7400 N1 specification requirements

5

Dual voltage support for 1.35V/1.5V

Technical Advantages

Technical Advantages

Military-spec Grade Highly Reliable Storage Solution

1

High Quality

2

Replaceable with Micron, Samsung and Other Components

3

Ultra-wide Operating Temperature Range: -55℃~105℃

4

Complies with GJB7400 N1 Specification Requirements

Technical Specifications

Specifications

Detailed Technical Specifications

Product Specifications

Interface Type DDR3 SSTL
Package Type FBGA96
Physical Dimensions 9mm×13.0mm×1.2mm
Capacity Configuration 128×16(2Gb)/256×16(4Gb)
Operating Temperature -55℃~105℃
Storage Temperature -45℃~90℃
Operating Frequency 800MHz/933MHz
Bus Width x16
Supply Voltage 1.35V/1.5V Dual Voltage
Reliability Standard Complies with GJB7400 N1 specification requirements
Replaceable Models Replaceable with corresponding devices from Micron, Samsung, etc.
Warranty Period 5-year warranty service
Application Cases

Application Cases

Highly Reliable Scenario Validation

1

Industrial Embedded Systems

Applied in industrial embedded systems, featuring high quality that meets high reliability requirements, and ultra-wide temperature operation to adapt to harsh environments.

Application Effects

  • High Quality and High Reliability
  • Ultra-wide Temperature Operation Adaptable to Harsh Environments
  • Compliant with GJB7400 N1 Specification
2

Special-purpose Computing Equipment

Used in special-purpose computing equipment, replaceable with corresponding components from Micron, Samsung, etc.

Application Effects

  • Replaceable with Micron and Samsung Components
  • High Stability Ensures Continuous Operation
