Your Outdoor Enclosure Hits 70°C+. Your DRAM Must Not Be the Weak Link.
8Gb DDR4 SDRAM for oil & gas, outdoor telecom, and industrial edge in the Gulf—sun-loaded field cabinets and site enclosures, not air-conditioned data halls. Designed to JEDEC DDR4, qualified for real sun load, not office-temp parts.
- Two proven temp grades: Industrial -40~85°C & Extreme -55~105°C
- Up to DDR4-3200 · speed-adaptive with your controller & PCB
- Remote Loongtion engineering — BOM review, grade & footprint guidance
- PDF datasheet & quote — usually within 24 hours (Mon–Fri)
- 3200MT/s max
- +105°Cextreme grade
- 4–6 wkbulk (working days) · ships from Ningbo
- Usually24h reply (Mon–Fri)
No public price list—we quote for your grade, qty & delivery to UAE / KSA / Qatar. Full commercial terms: MOQ, payment, samples & lead time.
8Gb DDR4 SDRAM for GCC — quick reference
8Gb DDR4 SDRAM · Industrial wide-temp DDR4 · GCC heat-qualified DDR4 for outdoor & industrial edge in the Gulf. Loongtion product owner (not a broker or trading house) · Industrial -40°C to +85°C · Extreme -55°C to +105°C · DDR4-3200 up to 3200 MT/s · JEDEC DDR4 FBGA78 & FBGA96 · ISO9001 QA program · MOQ 20 pcs · T/T 50/50 · ships from Ningbo, China · remote BOM review · Get datasheet & quote — reply Mon–Fri, usually within 24 hours.
Meet Loongtion — Product Owner for GCC DDR4
A short English message from our team—who stands behind this 8Gb DDR4 program for Gulf deployments.

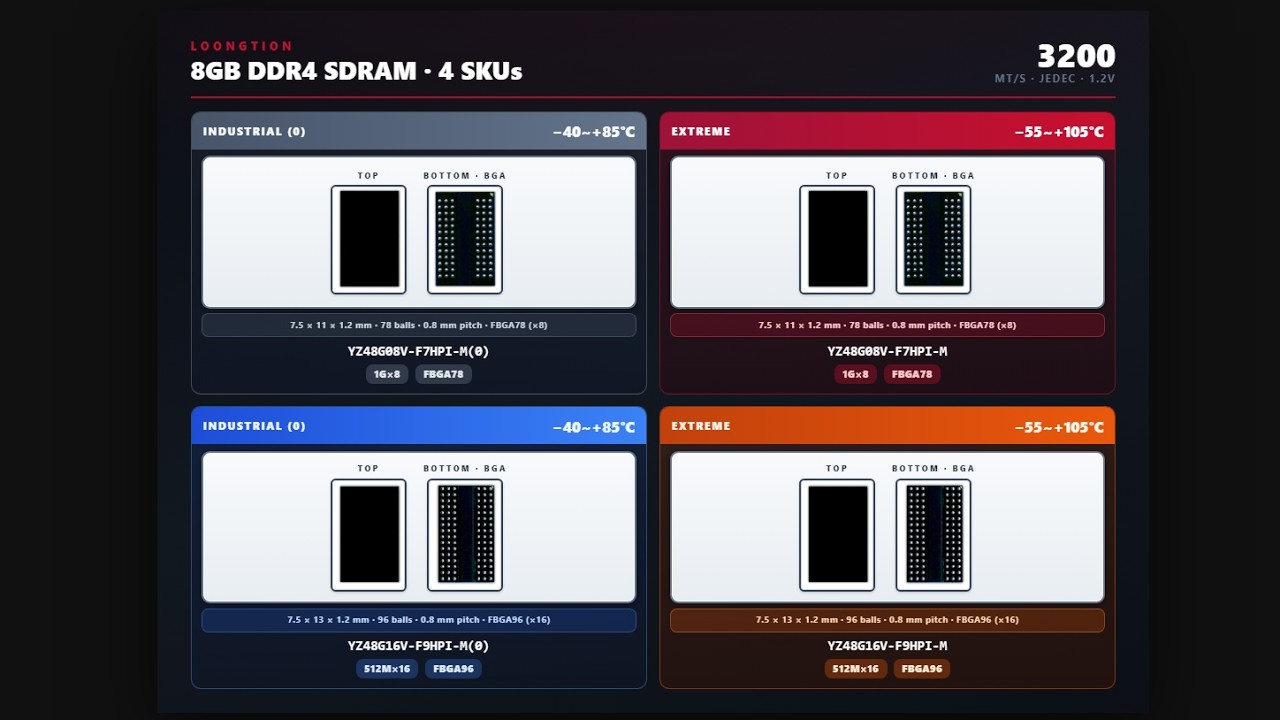

Orderable Part Numbers
One product—8Gb DDR4 SDRAM (8Gb monolithic; 1GB byte capacity per chip)—four orderable SKUs: pick organization (×8 vs ×16), then temperature grade. Industrial parts use suffix (0); extreme-environment parts omit it. Final speed up to DDR4-3200 depends on your controller and PCB.
Compatibility: FBGA78 (1Gb×8) and FBGA96 (512Mb×16) are not interchangeable—match your controller memory map before AVL lock.
Industrial (0)
-40°C ~ +85°C
Enclosures with moderate sun load, factory halls, semi-outdoor cabinets, rail edge with controlled ambient.
Extreme Environment
-55°C ~ +105°C
Gulf oil & gas, desert CCTV, outdoor telecom huts, substations—wide daily ΔT and high peak enclosure temperature.
Industrial · ×8
YZ48G08V-F7HPI-M(0)FBGA78 · 1Gb×8 · up to DDR4-3200
Extreme · ×8
YZ48G08V-F7HPI-MFBGA78 · 1Gb×8 · up to DDR4-3200
Industrial · ×16
YZ48G16V-F9HPI-M(0)FBGA96 · 512Mb×16 · up to DDR4-3200
Extreme · ×16
YZ48G16V-F9HPI-MFBGA96 · 512Mb×16 · up to DDR4-3200
| Grade | Part number | Package / organization | Temp. range | Max rate |
|---|---|---|---|---|
| Industrial | YZ48G08V-F7HPI-M(0) | FBGA78 · 1Gb×8 (16 banks) | -40~85°C | DDR4-3200 |
| Extreme Environment | YZ48G08V-F7HPI-M | FBGA78 · 1Gb×8 (16 banks) | -55~105°C | DDR4-3200 |
| Industrial | YZ48G16V-F9HPI-M(0) | FBGA96 · 512Mb×16 (8 banks) | -40~85°C | DDR4-3200 |
| Extreme Environment | YZ48G16V-F9HPI-M | FBGA96 · 512Mb×16 (8 banks) | -55~105°C | DDR4-3200 |
Click a part number to pre-select it in the inquiry form below, or use Copy beside each PN. Not sure which PN fits your BOM? Choose “Not sure yet” in the form or send controller, PCB stack-up, and ambient range—our engineering team will recommend grade and organization.
Industrial DDR4 product page·Extreme Environment DDR4 product page
What You Receive (Usually Within 24h, Mon–Fri)
Send your inquiry by email or the form below—we prepare a complete technical and commercial reply, not a generic stock list.
Complete PDF datasheet
Timing tables, AC/DC characteristics, package outline, refresh vs temperature, and orderable part numbers.
Commercial quotation
Grade, quantity, and destination pricing—see commercial terms for MOQ, payment, and lead time.
Free BOM & footprint review
Industrial vs extreme grade, ×8 or ×16, and incumbent-part comparison—verification on your hardware required.
Why Teams Choose Loongtion 8Gb DDR4 SDRAM
We are the product owner for this 8Gb DDR4 SDRAM program: we design and adapt the device, control incoming materials, test every release in our own labs, and support you directly—with a 5-year B2B free-replacement commitment on qualified bulk programs.
Design & solution ownership
Product specification, packaging design, platform fit, and material procurement—led by our engineering team under the Loongtion program.
10+ years in industrial memory
Engineering and QA rooted in Yizhuo (Xi’an), founded 2015—automation, energy, telecom, and other programs where uptime and temperature matter more than consumer-grade cost.
Proven in the field
Large volumes shipped into industrial and extreme-temperature programs. Customer names and application details are not published—we protect program confidentiality.
PRC domestic-supply option
Programs that require verified China-sourced content can use our domestic product line—ask sales for the grade and part number that fits your compliance file.
5-year B2B free replacement
On qualified bulk industrial orders: failure within five years under normal use, with reasonable customer evidence—we replace at no charge (terms on your quotation; built into our costing because we trust the design).
DDR4 depth + remote engineering
Up to DDR4-3200 · four orderable PNs (×8 / ×16) · remote engineering for BOM, speed bin, and incumbent-part evaluation (hardware verification required).
The Hidden Cost of Standard Memory
In GCC heat and sealed outdoor enclosures, a single field failure often costs more than a year of DRAM spend—downtime, truck roll, scrap, and customer trust. Office-temp or unqualified parts in a 70°C+ outdoor field enclosure are where that risk starts—not in a cooled server room.
- 70°C+outdoor / field enclosure concern
- 3.9 μsrefresh @ 85–95°C shell (spec)
- 5 yrB2B replacement program
| What goes wrong in the field | How Loongtion addresses it |
|---|---|
| Outdoor enclosure >70°C (sun-loaded field cabinet) but parts rated for office or narrow shell temp only | Two qualified grades: Industrial (0) -40~85°C · Extreme -55~105°C; temperature-dependent refresh per JEDEC |
| Random crash, data errors, or mismatched ×8/×16 organization on the BOM | JEDEC DDR4; Xi’an QA; four orderable PNs; CA parity, write CRC, DBI; engineering reviews your BOM by email |
| No accountable product owner if the lot fails after install | Contract with Loongtion as product owner; 5-year B2B replacement; named engineering contact (remote) |
| Procurement needs PDF spec and clear commercial terms before internal approval | Technical specification + quotation usually within 24 hours (Mon–Fri); full terms at Commercial terms |
Send your BOM and target ambient range—our application engineers will recommend industrial vs extreme grade, ×8 or ×16, and footprint compatibility with your incumbent DDR4 (verification on your PCB required).
Product Owner · Two Centers · Full Accountability
We are not a wafer fab, chip foundry, or PCB manufacturer. Loongtion’s role is design, customer solution adaptation, incoming quality control, test, and technical support—as the accountable product owner you contract with.
What our team delivers
- Product & package design — device specification, FBGA footprint, release criteria
- Solution adaptation — grade, organization, and timing fit for your controller & BOM
- Material program — wafers and critical inputs procured under our controlled supply chain
- Test & quality control — electrical and environmental screening in Xi’an before shipment
- Technical support — Loongtion engineering for integration, BOM review, and remote issue support by email
Who you work with
NBLoongtion (Ningbo) — global product-owner brand (est. 2024); sales, contracts, quotations, and GCC logistics.XAYizhuo (Xi’an) — R&D, reliability engineering, and in-house QA since 2015; major shareholder and engineering center.
On other lines (e.g. SSD), PCB layout and firmware may also be designed in-house. This page focuses on our 8Gb DDR4 SDRAM device family.

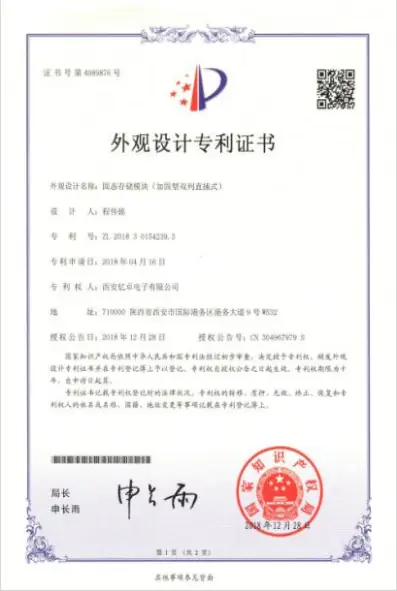

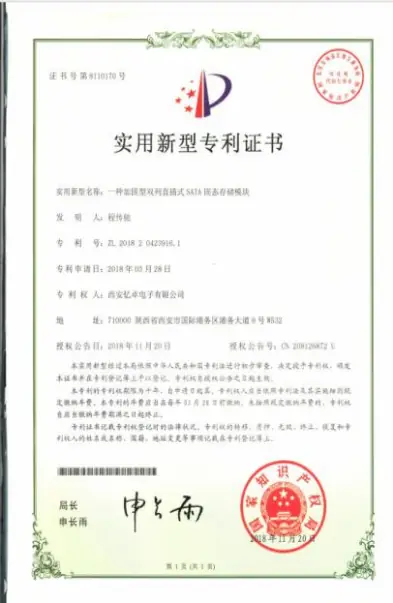

Business registration, ISO9001, trademarks, patents & high-tech enterprise credentials ↓
Registration, IP & Quality Documentation
Loongtion and Yizhuo program credentials—full copies included in your quotation pack on request.
Business registration & enterprise recognition
ISO9001, trademarks & patents
Key Technical Parameters
8Gb DDR4 SDRAM for design-in review: electrical, timing, and reliability features that matter in hot GCC enclosures—wide-temp qualification, stable performance, and long industrial service life. Complete datasheet (PDF) with full timing tables provided after inquiry.
At a glance
| Parameter | Specification |
|---|---|
| Product | 8Gb DDR4 SDRAM (8Gb monolithic; 1GB byte capacity per chip; four orderable SKUs by grade & organization) |
| Die density / organization | 8Gb die — 1Gb×8 (78-ball FBGA) or 512Mb×16 (96-ball FBGA) |
| Bank architecture | ×8: 16 banks (4 bank groups) · ×16: 8 banks (2 bank groups) |
| Maximum data rate | Up to DDR4-3200 (3200 MT/s); speed-adaptive with controller & PCB |
| Core supply | VDD = VDDQ = 1.2 V ±0.06 V |
| Activation supply | VPP = 2.5 V (2.375–2.75 V) |
| Temperature grades | Industrial -40~85°C case, suffix (0) (orderable guarantee) · Extreme Environment -55~105°C (wide-temp -M, no (0)). Datasheet also documents +85~+95°C case for Industrial with 3.9 μs refresh—confirm with our engineering team for your thermal model. |
| Refresh (shell 0~95°C) | 7.8 μs @ 0~85°C · 3.9 μs @ 85~95°C |
| Certificates (today) | ISO9001, business registration, trademarks, patents, and high-tech enterprise credentials — see documentation gallery |
| Higher-reliability QA | Designed and released under a stricter industrial reliability program (Xi’an); additional PRC quality-system documentation may be available per quotation |
| Design compliance | JEDEC DDR4 · lead-free · RoHS-aligned design |
| Warranty (B2B bulk) | 5 years; free replacement for normal-use failures with customer evidence (quotation terms; see FAQ) |
Electrical & timing
- 8-bit prefetch · burst length 8 · burst chop 4
- Bidirectional differential DQS
- On-die PLL for CK/DQ/DQS alignment
- Programmable CAS latency CL 10–22
- Additive latency: 0, CL−1, CL−2
- CWL by speed bin: 12/14 (DDR4-2400) · 14/18 (2666) · 16/20 (2933 & 3200)
- ODT, ZQ calibration, asynchronous reset
- POD I/O · internal VREF for data inputs · external VPP for activation
Reliability & data integrity
- CA parity (command/address)
- Write CRC on the data bus
- DBI (data bus inversion)
- DLL-off mode supported
- Low-power autonomous refresh
- Post-package repair (PPR) — see configuration notes below
Full SDRAM feature checklist (design-in)
- JEDEC-standard 78-ball FBGA (×8) and 96-ball FBGA (×16) packages
- 8Gb DDR4 with 8-bit prefetch; burst length 8; burst chop 4
- Differential DQS (both directions); on-die ODT; ZQ calibration
- Asynchronous reset; on-chip PLL for clock/data alignment
- Programmable CAS latency, additive latency, and speed-dependent CWL
- Temperature-dependent average refresh (0~95°C shell temperature range)
- CA parity, write CRC, DBI, DLL-off, low-power auto-refresh
- POD interface; internal VREF (DQ in); external VPP (activation)
- Lead-free, RoHS-aligned design; JEDEC DDR4 compliant
- PPR is supported in ×16 configuration only.
- PPR is supported during PRECHARGE ALL.
- TEN mode is supported in ×16 configuration only.
- TDQS mode is not supported in ×8 configuration.
- Speed-adaptive — final data rate depends on controller, PCB layout, and speed bin.
- Send your BOM — Loongtion engineering can help match grade, organization (×8 / ×16), and FBGA footprint fit against your incumbent part (verification on your hardware required).
- Datasheet & quote — PDF technical specification usually emailed within 24 hours (Mon–Fri); quotations typically valid 7 days.
- Commercial terms — see MOQ, payment, samples & lead time.
Where 8Gb DDR4 SDRAM Runs in the GCC
Same 8Gb DDR4 SDRAM program—different enclosure physics. Below is how we typically map grade to Gulf and Middle East deployments (our engineering team confirms by email from your thermal model).
Oil & gas / remote field
Usually Extreme Environment
Sun load, sand, and wide day–night ΔT on wellhead, pipeline, and remote SCADA edge.
e.g. YZ48G08V-F7HPI-M or YZ48G16V-F9HPI-M
Outdoor telecom / 5G
Industrial or Extreme — engineering-guided
Cabinet thermal model drives grade; we align speed bin and organization with your baseband/CPU memory map.
Share BOM + enclosure peak temp
Industrial automation
Usually Industrial (0)
Controlled or semi-outdoor factory ambient; vibration and EMI managed in the system design.
e.g. YZ48G08V-F7HPI-M(0) / YZ48G16V-F9HPI-M(0)
Desert traffic / CCTV
Extreme Environment
Roadside enclosures with daily heat soak; uptime matters more than consumer-grade cost.
e.g. YZ48G08V-F7HPI-M (×8 common on edge boards)
Remote power / substation
Extreme Environment
Grid edge and protection relays in metal cabinets; long maintenance intervals.
Match organization to controller; confirm by email with engineering
Rail / transport edge
Usually Industrial (0)
Vibration, extended temperature swing, and qualified supply chain for rolling stock programs.
e.g. YZ48G16V-F9HPI-M(0) where ×16 is required
Your application not listed? Describe ambient range, duty cycle, and quantity in the form—we will usually propose a grade, part number, and quotation within 24 hours (Mon–Fri).
Commercial Terms (B2B)
Full terms for procurement review—also summarized in your quotation PDF.
- MOQ: 20 pieces per part number (unless stated otherwise on quote)
- Payment: T/T wire transfer—50% deposit on order, 50% before shipment
- Dispatch: default from Ningbo, China · bulk lead typically 4–6 weeks (working days)
- Express delivery: often 3–5 business days after dispatch to UAE / KSA / Qatar (customs may add time)
- Samples: typically 1–5 pcs per PN for engineering validation; sample and courier fees charged upfront. On your first bulk order on the same program (MOQ 20 pcs), the sample fee is deducted from that order—effectively free samples when you go to bulk—you may use your courier or freight forwarder
- Quotation validity: typically 7 days after we review your requirements
- BOM / hardware review: typically within 1 working week when you send design files or units
- 5-year B2B program on qualified bulk orders—free replacement when you show normal-use failure within the period (details on your quote)
- Pricing: no public price list—quoted per grade, quantity, and destination
Sample policy (summary)
- Quantity: typically 1–5 pcs per PN for engineering validation (extra qty quoted as small batch)
- Fees: sample and courier charged upfront; on your first bulk PO on the same program when MOQ (20 pcs) applies, the sample fee is deducted from that order—effectively free samples
- No PN yet? choose Not sure in the form or email your BOM to hi@loongtion.com
5-year B2B free replacement — scope & exclusions
Applies to: qualified industrial bulk orders (not engineering samples alone); device used within published JEDEC DDR4 voltage, timing, and Tc limits; failure under normal use in the intended application.
What we need: affected part number, batch/date code if available, brief failure description (and system log or FA summary when you have it).
Not covered: physical damage, mishandling, ESD beyond spec, over-voltage/over-temperature, improper reflow or rework, unauthorized modification, or use outside the agreed AVL/grade.
Full legal terms are on your quotation / bulk contract. Consumer warranty at loongtion.com/warranty does not apply to industrial bulk programs.
Temperature ratings refer to case temperature (Tc) under JEDEC operating rules—your enclosure thermal design still matters. See warranty scope & exclusions above; full terms on your quotation.
Trusted for Demanding Industrial Workloads
Designed, qualified, and supported by Loongtion as the product owner—deployed across automation, energy, telecom, and transport programs where downtime is costly.
Business registration, trademarks & patents
“Reliability is not a marketing line—it is what we test before release.” — Loongtion Engineering
Get Datasheet & Request a Quote
Email is the best way to reach us. Attach your BOM, schematic, thermal notes, and quantity breaks so requirements are clear. We usually respond within 24 hours (Monday–Friday) with PDF datasheet and quotation. Commercial details: see terms above.
Preferred
Best for BOM files, part-number questions, and detailed specs. Attach PDF, Excel, or zip—we read everything before we quote.
Phone
China hotline0086-400-851-6832
Direct line0086-138-05878152
Dial 0086 (China country code) before the number when calling from outside China. We still prefer email so we can review attachments and reply thoroughly—not live chat.
Or complete the inquiry form below ↓
Frequently Asked Questions
Answers for procurement and design-in engineers on GCC programs—how to quote, how to pick a grade, commercial terms, and who stands behind the device.
Getting started
How do I get the datasheet and quote?
Email is preferred (hi@loongtion.com) so you can attach BOM and specs, or use the inquiry form below. We usually reply within 24 hours (Monday–Friday) with the complete datasheet (PDF), commercial quotation, and engineering notes. See what you receive.
What should I send so you can quote quickly?
Company name, ship-to country, quantity and timeline, application, preferred grade if known, BOM or controller/memory map, enclosure temperature range, and any incumbent part number to match. Email to hi@loongtion.com with attachments, or use the form below.
Who you are buying from
Are you a trading company, distributor, or chip factory?
None of the above. Loongtion is the product owner: we define the device, adapt it to your platform, procure key materials, test and release from our own QA program, and support you directly. We are not a wafer fab, foundry, or PCB manufacturer.
What is the relationship between Loongtion and Yizhuo?
Yizhuo (Xi’an) has been our engineering and QA center since 2015. Loongtion (Ningbo), established 2024, is the global product-owner entity you contract with for export programs including GCC. Same team, same labs, same release process—you work with Loongtion; engineering accountability sits with our Xi’an center.
Choosing the right device
What temperature grades are available?
Industrial: -40°C to +85°C case (suffix (0))—this is the grade we guarantee on the orderable part numbers above. Extreme Environment: -55°C to +105°C (wide-temp -M, no (0)). Send enclosure peak temperature, sun load, and duty cycle—our engineering team will recommend a grade.
Industrial or Extreme for a hot GCC outdoor cabinet?
If the enclosure can exceed ~70°C or sees wide day–night ΔT (desert, roadside, unmanned hut), start with Extreme Environment. Controlled factory or indoor industrial ambient often fits Industrial (0). We validate against your thermal model, not guesswork.
Should I use ×8 or ×16 organization?
Match your memory controller and PCB layout: 1Gb×8 in FBGA78 or 512Mb×16 in FBGA96. Each chip is an 8Gb die (1GB byte capacity). Send your BOM or memory map—wrong organization is a common procurement mistake we help catch early.
Which part numbers can I order today?
Four production part numbers—see the orderable table above: industrial and extreme grades for ×8 and ×16. Full technical specification is emailed as PDF after inquiry.
Quality & support
Is this 8Gb DDR4 SDRAM for military or defense use?
No. We do not market this device for military or defense end-use. Extreme Environment grade (−55°C to +105°C) reflects harsh industrial qualification—Gulf oil & gas, outdoor telecom, remote infrastructure—not armed-forces programs. Technical scope per SKU is defined in the datasheet and quotation pack.
What standards and certificates apply?
ISO9001 quality management, business registration, trademarks, patents, and high-tech enterprise credentials are shown in the documentation gallery and included in the standard quote pack. Additional PRC high-reliability documentation may be available through our Xi’an QA program when your AVL requires it. Design compliance: JEDEC DDR4, lead-free, RoHS-aligned. COA and compliance statements are provided per quotation.
Commercial & warranty
What are your commercial terms (MOQ, payment, samples, delivery)?
See the full Commercial terms section: MOQ 20 pcs per PN, T/T 50% + 50%, default ship from Ningbo, China, bulk lead 4–6 weeks (working days), samples 1–5 pcs charged upfront (sample fee deducted on first bulk PO), quotation valid 7 days.
What warranty applies to our B2B bulk order?
On qualified industrial bulk programs, we offer a 5-year commitment: if a device fails under normal use within that period and you provide reasonable evidence, we replace it at no charge. See scope & exclusions; full terms on your quotation. Published consumer policies at loongtion.com/warranty do not apply to industrial bulk contracts.
Still comparing suppliers? Send your incumbent PN, quantity, and enclosure temperature—we will respond with a recommended Loongtion part number, PDF spec, and quotation.
